Automatic steel pipe bundle strapping packing line

Automatic steel pipe bundle strapping packing line is designed to seamlessly connect to your steel pipe production line. This line includes steel pipe bundle stacking in both hexagonal and rectangular shapes, with a maximum length of 16m. Our state-of-the-art technology streamlines the entire packaging process, ensuring that your steel pipe bundles are securely strapped and ready for distribution.

Automatic steel pipe bundle strapping packing line

MORE PHOTOS

Automatic steel pipe bundle strapping packing line-1 Automatic steel pipe bundle strapping packing line-2 Automatic steel pipe bundle strapping packing line-manufacturer Automatic steel pipe bundle strapping packing line-for sale



A.Auto Steel Pipe Bundle Strapping Packing Line




Product Shape            : Round, Square & Rectangular

Size                : Round Min Ø 114.3 mm ~ max Ø323.9 mm
                : Square Min 90 x 90 mm ~ Max 250 x 250 mm
                : Rectangular 80 x 100 mm ~ max 200 x 300 mm
Thickness            : 3.0 mm ~12.7 mm
Bundle Size             : Hexagon Width Min 450 mm ~Max 1100 mm
                : Hexagon Height Min 350mm ~Max 1000 mm
                : Square & Rectangular Width Min 350 mm ~950 mm
                : Square & Rectangular Height Min 300 mm ~ 800 mm
Length                : 4.5 meters ~16 meters
Bundle Weight        : Max 13,000 Kg
Bundling Out Conveyor    : About 43 meter length consist of automatic strapping
  Machine.
Steel Strapping         : 25 mm and 32 mm automatic steel strapping machine

Bundling Out Chain Conveyor    : With Lifting device and maximum storage of 8 bundles

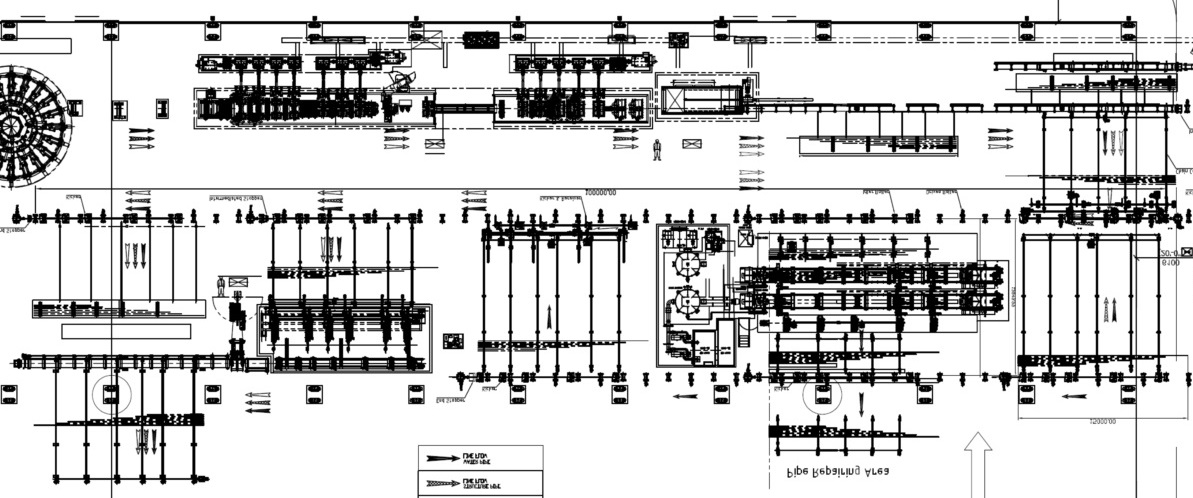

This is the general layout and the rectangular boxed is the Auto packing line with tube strapping machine. The roller conveyor will transfer the pipes & tubes to the green colour boxed area and Fhope will design the attachment chain lifting device to lift the pipes & tubes from the roller conveyor. The roller conveyor maximum speed is 90 meter/min.
