Automatic cable coiling and packing solutions.Full-automatically packaging line in quick and efficiently, saving on labour and time on costs...
To replace the manual handling and avoid occupational injury
Fool style operation with non skilled staff
EU standard in electrical and mechanical with maintenance free
solution on-line /off-line
All-in-one automation packing line for cable, put packing functions together from cable measuring, coil winding, auto cutting off cable, then auto wrapping with PVC film.
|
Model |
Height
|
O.D
|
I.D
|
Dia
|
Dia
|
|---|---|---|---|---|---|
|
FCAL-360 |
40-100 |
180-360 |
130-200 |
0.8-6 |
1000 |
|
FCAL-460 |
50-120 |
200-460 |
140-220 |
1-12 |
800 |
|
FCAL-600 |
60-180 |
200-600 |
180-250 |
5-15 |
200 |
|
FCAL-800 |
80-240 |
400-800 |
250-320 |
10-25 |
100 |
solution on-line /off-line
Full-automatic combined design with cable coiling and PP belt strapping for cable coil. Automatically positioning coil ID and PLC program control to realize one or two or four straps after coiling making.
|
Model |
Height
|
O.D
|
I.D
|
Dia
|
Speed
|
|---|---|---|---|---|---|
|
FCAL-S360 |
40-100 |
180-360 |
130-200 |
0.8-6 |
1000 |
|
FCAL-S460 |
50-120 |
200-460 |
140-220 |
1-12 |
800 |
|
FCAL-S600 |
60-180 |
350-600 |
180-250 |
5-15 |
200 |
|
FCAL-S800 |
100-220 |
450-800 |
250-320 |
10-25 |
150 |
solution on-line /off-line
Coiling and strapping and shrinking in one-line machine. POF film heat sealing and shrinking for coiled cable from front conveyor. Automatic film feeding and cutting system with sensor controlling.
|
Model |
Height
|
O.D
|
I.D
|
Dia
|
Speed
|
|---|---|---|---|---|---|
|
FCAL-360sSH |
40-100 |
180-360 |
120-200 |
0.8-6 |
1000 |
|
FCAL-460SH |
50-120 |
200-460 |
140-220 |
1-12 |
800 |
|
FCAL-600SH |
60-180 |
300-600 |
180-250 |
5-15 |
200 |
|
FCAL-800SH |
100-240 |
400-800 |
250-350 |
10-25 |
150 |
solution on-line /off-line

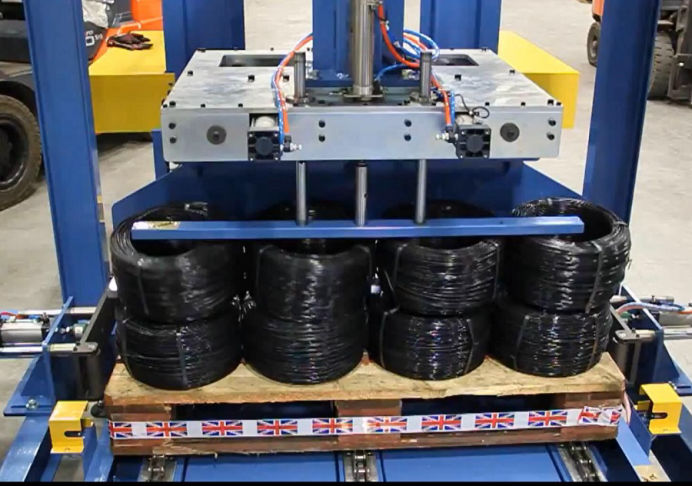

Auto conveying cable coils to stacking station, automatic arranging coils orderliness layer and layer. The height of stacking on pallet upto 1200mm, to be prepared for the subsequent whole pallet packaging.
|
Model |
Height
|
O.D
|
I.D
|
Dia
|
Speed
|
|---|---|---|---|---|---|
|
FCAL-360ST |
40-100 |
180-360 |
120-200 |
0.8-6 |
1000 |
|
FCAL-460ST |
50-120 |
200-460 |
140-220 |
1-12 |
800 |
|
FCAL-600ST |
60-180 |
200-600 |
180-250 |
5-15 |
200 |
|
FCAL-800ST |
800-240 |
300-800 |
250-320 |
10-25 |
100 |
Spark tester is a rapid and continuous voltage resistance test method, mainly used for rubber,plastic insulated wire, or sheath of rubber, plastic insulated wire core, generally suitable for 1000V and below voltage level products. Because the equipment is simple and fast, it is widely used in manufacturing plants.
What is the price of the coiler?
The machine price very from cable size and packing functions. Please provide these information and our team will offer the price in half hour.
What kind of cable coiling machine is the best one?
The coiler need to be designed according your packing require, factory layout...So before decision, it is better providing the requirement with detail our technical team will help to find out the best one
Do your providing the service?
We have our service team to help Upender installation, commissioning, and after service. Our team provides the local on site service also.
Can we add the additional function on your machine?
Yes, we providing the customize solution which can be designing according handling goal and special requirement.
Years Of Experience
Square Meter Facility
Team Members
Happy Clients
For better understanding the cable coiling&packing solutions and choosing a proper solution per require, follow is some tips for helping to learn some information for choosing a right equipment decision.
PLC & HMI control program are used for automatic operation.
Principle: Fhope manufacture In-line / Off-line all-in-one line machine, and accessories for cable measuring, winding, auto cutting off, auto wrapping with PVC film, and then for coils storing…The whole packaging line is designed for making coils for 1 to 25 mm diameter of a large variety of cables, such as electric motors cable, power cable, communication cable….
All parameters can be setting on touch screen. All display be in English. Automatic calculating the cable length, meter error is almost negligible. Automatic detecting the cable position automatic by sensor..
One side or Two /Four straps tied with PP belt
One side type strapping way, PP belt will be tied around the outer diameter of the finished coil. Automatic positioning for different coils size without any manual operation.
The strapping action adopts safe hot welding mode with adjustable tension.
The cable coil can be strapped by pp belt be eye through. It can be two belts per 180 degree or four belts per 90 degree each belt.
For speed up the strapping with 4 belts, FHOPE providing the solution in one coiling station with two strapping heads that is able finshing 2 coils winding and strapping
A full- automatically cable coil shrinking packing line is a solution for cable coiling and packing.
The shrinking machine provide the sealed packaging protection for the cable coil that isolates the coil from the dust, moisture and scratching in transportation.
Constant temperature heat sealing and cutting system is suitable for POF. Automatic film feeding and cutting system with sensor controlling. Recirculation heating system consumes less electrical energy by minimizing heat loss, and with cooling equipment.
Based on your application, we will modify the settings or system upgrades to make our equipment easy to operate, simple to working in a easy way from packaging to stacking. The stacking machine offer automation with great flexibility to connect with yout warehouse that reduce your time to gathering and handling the cable coils on pallet.
