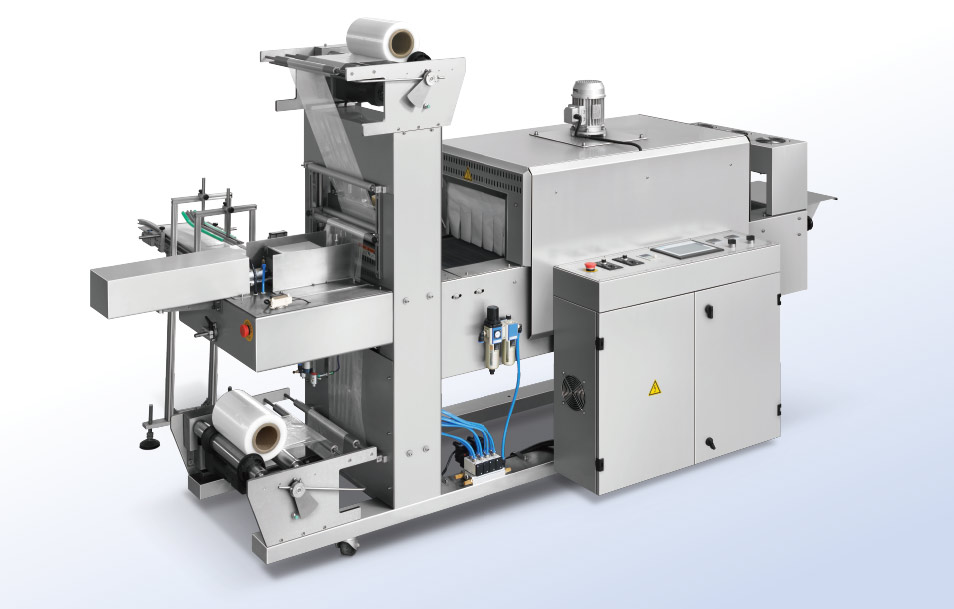

Automatic sleeve shrinking machine SK-060BBS

Description
Other

SK-060BBS fully automatic sleeve packing machine is designed for “carton stacking collective packaging”, easy to connect with production line and operate the feeding, wrapping, sealing, shrinking, freezing fully automatic without manual assistance. Various composing ways: 10 boxes(2*5）、9 boxes(3*3)、12boxes(3*4)、15boxes(3*5).......

1.SK-060BBS made based on world leading technology and workman craft, the machine is reliable and safe.

2.Adopt “Siemens PLC” and programmable controller, integrated the electrical, mechanical, and pneumatic components to one system.

3.The machine is able to pack products according to production requirement such as two lines, three lines, four lines... with or without under support. Only need to switch the rotating switch when changing the packing form.

4.Adopt worm gear reducer, no vibration during in-feeding and film feeding.

5.Used special sealer, the sealing is secure and not easy to open. No sticking to the sealer due to Teflon coating. Conveyor made of PE material, high anti-abrasion and high strength.

6.Automatic feeding fixture choosing according to the bottle shape.

7.When using colorful packing materials, adding the color coding system to achieve positioning function.

8.Mode designing, immediate exchange when bottle shapes change.

9.Conveyor can be designed to in-feed from the right side or left side according to the working place requirement.

10.SK-060BBS adopt double wind engine. Well distribute the heat to every corner. Make the shrinked package much more nice.

11.Silicon rubber covered on the rollers, extend the work life of conveyor. We also can switch the material to other types according to customer’s special requirement.

12.Conveying speed is manipulated by frequency converters, no restriction on regulating.

13.Strong wind cooling system, cool down the products instantly after heat shrinking.

14.Optional to add roller table next to the exit of shrink tunnel, prevent falling to floor.

Model	SK-600BBS
Sealing type	sleeve sealing
Power supply	380V/50-60Hz/3phase
Max product size	280(L) x 180(W) x 150(H)mm
Packing capacity	6-18 packs per minute
Film type	polyethylene (PE) film
Max film size	350(width) x 280mm(outer diameter)
Power consumption	max. 8kw

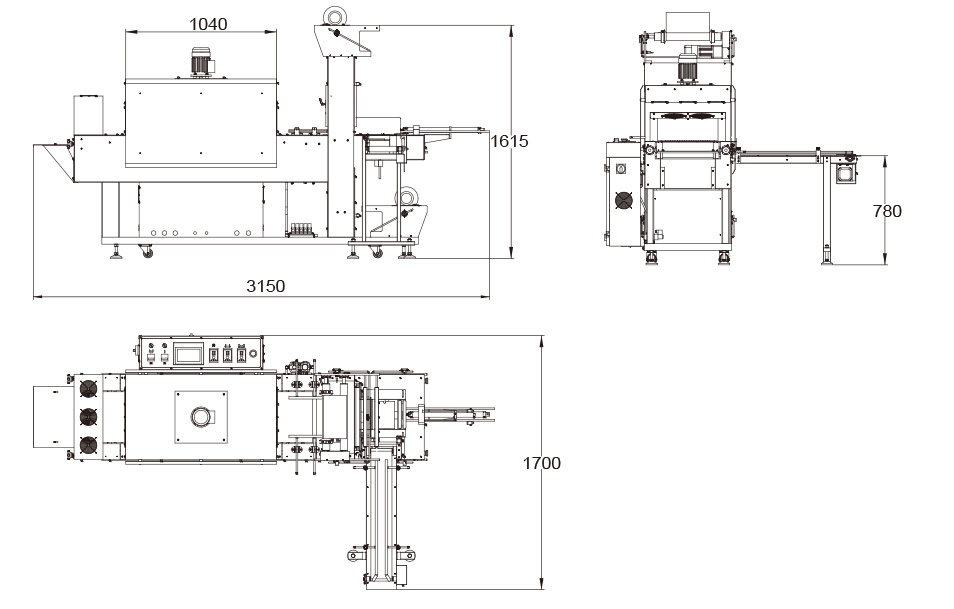

Tunnel oven size	entrance 1040(L) x 355(w) x 220(H)mm
Tunnel conveyor speed	variable
Tunnel conveyor	steel mesh conveyor, Teflon mesh conveyor , roller conveyor
Working height	850-900mm
Air pressure	≤0.5MPa(5 bar)
Sealing system	Special durable alloyed sealing knife with anti-stick Teflon coats
Operating panel	Siemens colorful touch screen, PLC, omron temperature controller
Machine material	stainless steel
Weight	600kg
