Dust-Proofing Coil Packing Machines for Clean Rooms

Keeping coil packing machines dust-free is critical in clean rooms to prevent particle contamination and ensure product integrity; we provide the equipment for these stringent conditions.

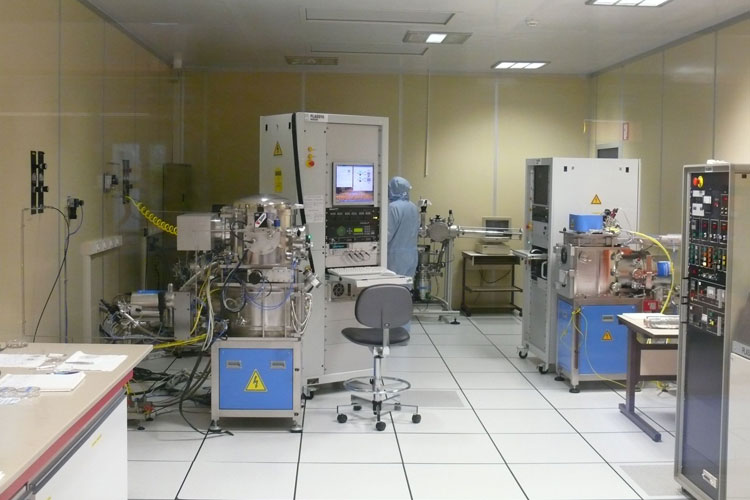

In industries like pharmaceuticals, life sciences, and high-tech manufacturing, maintaining a sterile and particle-free environment is paramount. Clean rooms, categorized by ISO classifications (e.g., ISO 5 or Class 100), are specifically designed to control and minimize contaminants. Within these controlled spaces, even the smallest particles can compromise product quality and yield. Consequently, every piece of equipment within a clean room, including coil packing machines, must be designed and operated to prevent particle generation and ensure compliance with strict cleanliness standards. This article delves into the critical aspects of dust-proofing coil packing machines to maintain the integrity of clean room environments.

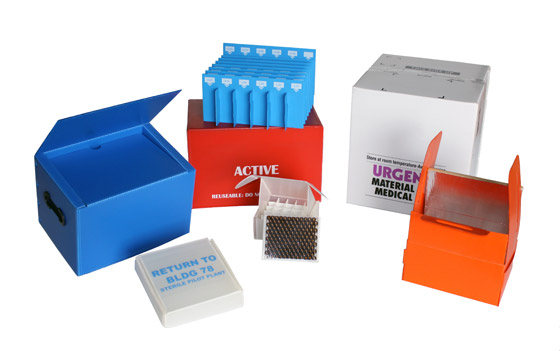

Packaging within a clean room environment is not just about containment; it’s about maintaining the purity and quality of the components being packaged. The vulnerability of high-tech parts and life science components to contamination necessitates meticulous attention to every detail of the packaging process. Clean room environments demand a significant reduction in particulates, requiring specialized equipment. Clean room atmospheres must contain significantly fewer particles than ordinary air. In some applications, the atmosphere in an ISO 5 cleanroom must contain 10,000 times fewer particles larger than 0.5 µm than normal atmosphere. This level of cleanliness requires the development of specialist sealing equipment.

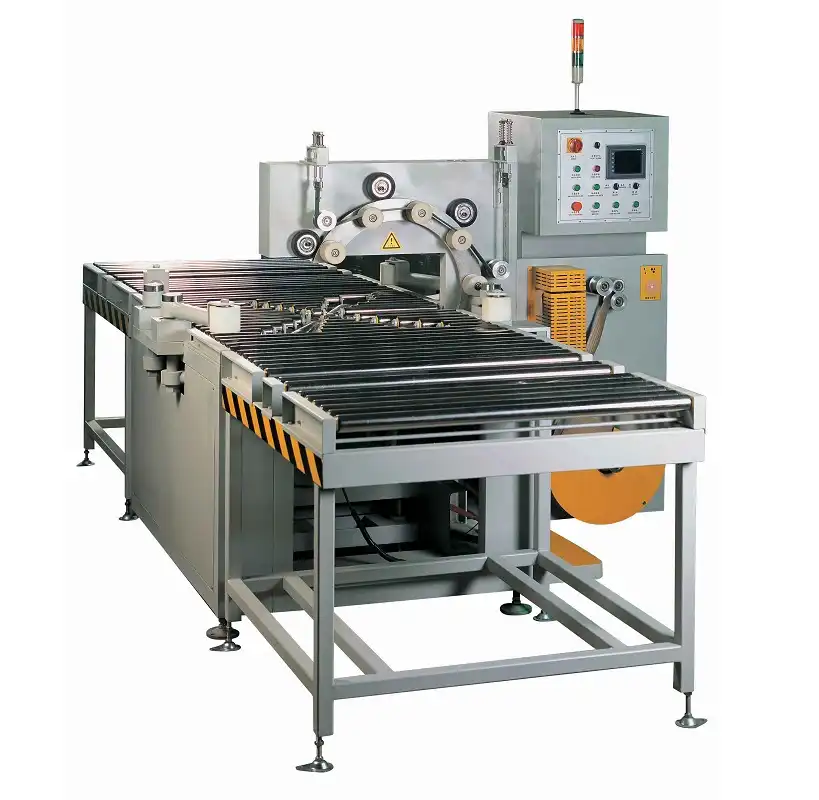

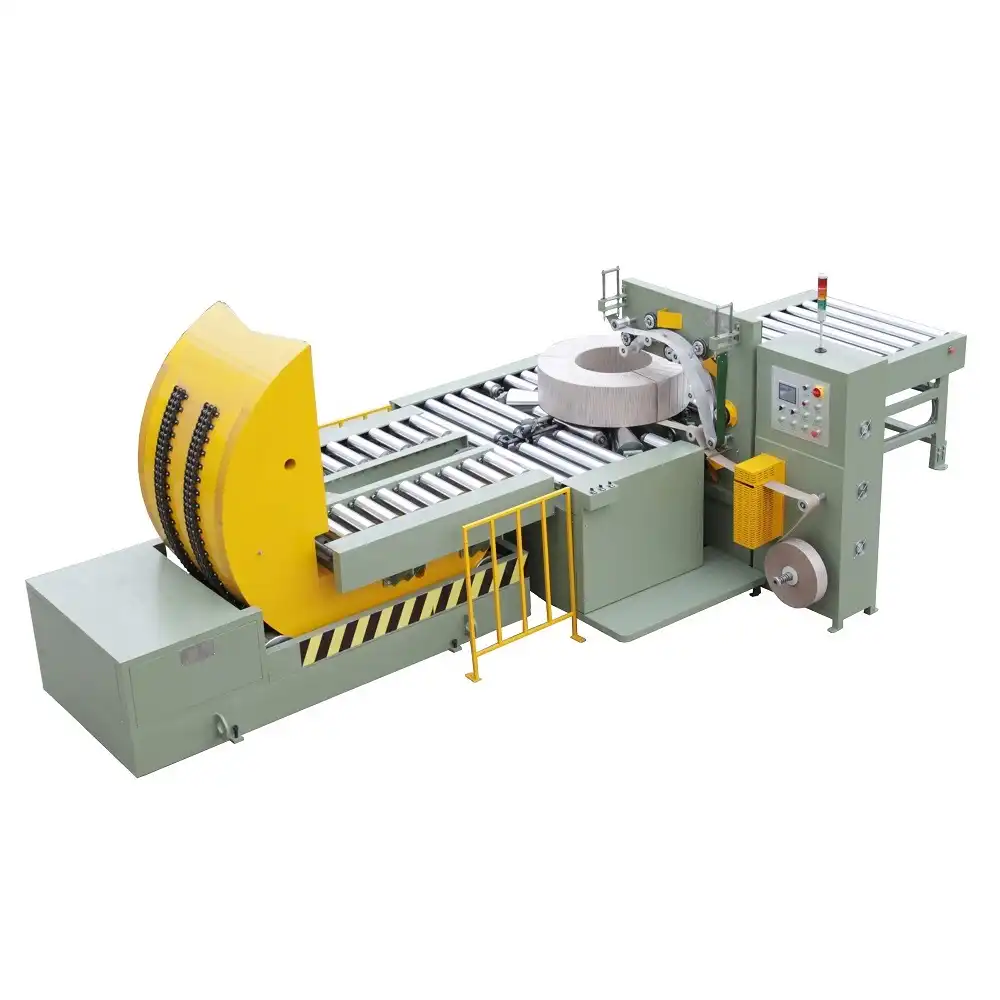

Coil packing, whether for steel, wire, copper, hose, or cable, presents specific challenges in a clean room environment:

• Material shedding: The friction and movement inherent in coil winding and wrapping can generate particulates from the materials themselves, the machine components, or the surrounding environment.
• Machine operation: Moving parts, such as rollers, belts, and cutting mechanisms, are potential sources of particle contamination.
• Static electricity: Static buildup can attract dust and airborne particles, further increasing the risk of contamination.
• Material type: Different coil materials (e.g., steel, copper, plastic) require different packaging materials and methods, each with its own associated risks of particle generation.
  To effectively mitigate these challenges and maintain clean room standards, several dust-proofing strategies must be implemented in the design, construction, and operation of coil packing machines.

Material Selection

Choosing the right materials is crucial for minimizing particle generation. Where possible, stainless steel is the material of choice for many components due to its ease of cleaning, corrosion resistance, and low shedding properties. Other preferred materials include:

• Low-shedding polymers: Specially formulated plastics and polymers that are designed to minimize particle shedding.
• Specialty coatings: Surface treatments that reduce friction and wear, thereby decreasing particle generation.
• Spline Chucks: Some capping chucks incorporate spline chucks instead of the old rubber ones. This prevents shedding from rubber material. This chuck would have ridges which match with the ones on the cap. The stainless-steel spline chuck will not wear and will not shed. It is an ideal solution for clean rooms, especially when high application torques are required to prevent leaks.


  Machine Design

Careful design considerations are paramount:

• Enclosed systems: Enclosing the coil packing process minimizes the exposure of materials and components to the clean room environment.
• Smooth surfaces: Eliminating sharp edges and crevices reduces the accumulation of dust and facilitates thorough cleaning.
• Minimal moving parts: Streamlining the design to reduce the number of moving parts minimizes the potential for particle generation.
• Filtered air exhausts: For pneumatic components, single-port filtered compressed air exhausts are essential.
• Laminar flow HEPA filtration units: Incorporating HEPA filtration units ensures that air circulating within the machine is free from particles.
• Purged Electrical Enclosures: Electrical enclosures are purged to prevent the entry of contaminates.


  Particle Contamination Control

Implementing stringent particle control measures is necessary:

• Regular Cleaning: Implementing a rigorous cleaning schedule using approved clean room cleaning agents and techniques.
• Elimination of Ignition Sources: Eliminating sources of spark or ignition is necessary to have a cleaner environment.
• Air Filtration: Installation of HEPA filters to capture airborne particles generated during operation.
• Air Pressure Control: Maintaining positive air pressure within the machine to prevent the ingress of contaminants.

Packaging Material Considerations

Using the following packaging materials makes a huge difference:

• Stretch film: made from low-density polyethylene (LLDPE) provides excellent water and moisture resistance.
• Paper: Paper provides the VCI formula that is for moisture-proof packaging for seaworthy packages or rainy season packages.
• HDPE/PE: Films provide effective protection against scraping, ensuring that the packaged coil’s surface remains damage-free during handling and transportation.
• Wolven knit belt: Protects coils from scrapes during transportation and can be customized to accommodate various coil sizes and shapes.


  Equipment Validation and Calibration

Ensuring the reliability and accuracy of the coil packing machine is vital:

• Calibration: Implementing regular calibration procedures to maintain the accuracy of sealing parameters, such as sealing pressure and temperature.
• Validation: Verifying that the packaging process consistently meets the required cleanliness standards.
• Data analysis: Exporting seal data for analysis to ensure continuous quality.


  Operator Training

Providing comprehensive training to operators is essential:

• Proper handling: Training operators on the correct handling procedures for materials and equipment to minimize contamination.
• Cleaning protocols: Instructing operators on the proper cleaning protocols and the use of approved cleaning agents.
• Maintenance: Educating operators on basic maintenance tasks and troubleshooting to prevent equipment malfunctions that could lead to particle generation.

The way the coil is handled has a big effect on what machine you choose. The machine version needs to be flexible to work with the handling ways used in your facility. There are a number of different wayso handle material:

1. Manual loading for light products
2. Conveyor loading for connecting with the production line
3. Crane loading for heavy products
4. Forklift for coil moving

Once you consider all of these handling requirements then you are able to purchase the right machine.
Investing in dust-proofed coil packing machines yields significant benefits:

• Reduced contamination: Minimizing particle contamination ensures the integrity and quality of packaged components.
• Improved yield: Preventing contamination leads to higher production yields and reduced waste.
• Enhanced product reliability: Clean packaging ensures the reliability and performance of sensitive components.
• Regulatory compliance: Meeting stringent clean room standards ensures compliance with industry regulations and customer requirements.
  Maintaining a dust-free environment for coil packing machines in clean rooms requires a multifaceted approach encompassing material selection, machine design, particle control, equipment validation, and operator training. By implementing these strategies, manufacturers can safeguard the integrity of their products, improve yields, ensure regulatory compliance, and maintain a competitive edge in demanding industries. With proper dust proofing techniques manufacturers can be assured that their facility remains safe and in compliance.
