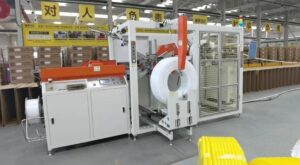

Fully automatic HDPE, PEX pipe coiler and strapping machine

Optimizing Pipe Packaging: FHOPE's Fully Automatic HDPE & PEX Coiler and Strapping Machine

Efficiently handling and packaging extruded pipes like High-Density Polyethylene (HDPE) and Cross-linked Polyethylene (PEX) is crucial for manufacturers aiming to streamline operations and reduce costs. Manual coiling and strapping processes are often labor-intensive, inconsistent, and can pose safety risks. FHOPE PACK addresses these challenges with its fully automatic coiling and strapping machine, specifically designed for HDPE and PEX pipes, delivering enhanced productivity and package quality.

FHOPE specializes in providing robust and automated packaging solutions. This particular machine integrates coiling and strapping into a seamless, operator-minimal process, designed for high throughput and reliability in demanding industrial environments.

1. Core Functionality: The Automated Process Flow

The FHOPE machine executes a synchronized sequence of operations:

1. Pipe Accumulation & Feeding: Receives the pipe directly from the extruder line or an accumulator.
2. Precision Coiling: The pipe is accurately wound onto a coiling head. A traversing unit ensures even layering, forming neat, stable coils according to pre-set parameters (diameter, width).
3. Automatic Cutting: Upon reaching the desired length, the pipe is automatically cut cleanly.
4. Coil Transfer: The completed coil is transferred from the coiling station to the strapping station.
5. Integrated Strapping: An automatic strapping unit applies and seals a pre-determined number of straps (typically PP or PET) around the coil circumference, securing it for handling and transport.
6. Coil Ejection: The finished, strapped coil is automatically ejected onto a collection area, roller conveyor, or designated palletizing system.

2. Key Components and Structural Design

The machine's performance relies on its well-engineered components and robust construction:

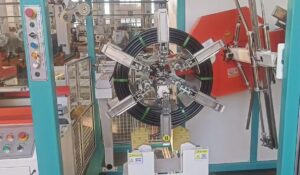

• Coiling Head: Designed for specific coil sizes (inner/outer diameter, width), often adjustable. Features mechanisms for gripping the pipe end and collapsing for easy coil removal.
• Traversing System: Servo-driven or precisely controlled mechanical system that guides the pipe across the coiling head width for level winding.
• Strapping Unit: Incorporates a reliable strapping head (pneumatic or electric options available) for tensioning, sealing (heat seal or friction weld), and cutting the strap.
• Control System: Typically utilizes a Programmable Logic Controller (PLC) (e.g., Siemens, Allen-Bradley) integrated with a user-friendly Human-Machine Interface (HMI) touchscreen. This allows for parameter setting (coil length, dimensions, strap positions), recipe storage, real-time monitoring, and diagnostics.
• Frame and Safety: Built on a heavy-duty steel frame for stability and longevity. Includes safety guards, interlocks, and emergency stops compliant with relevant safety standards.

3. Technical Specifications Overview

While specific configurations vary based on customer requirements, typical performance parameters include:

• Applicable Pipe Diameters: 16mm - 63mm (Common range for coiled HDPE/PEX)
• Maximum Coiling Speed: Up to 60 m/min (Synchronized with extrusion speed)
• Coil Dimensions:
  • Inner Diameter (ID): Adjustable (e.g., 500mm - 800mm)
  • Outer Diameter (OD): Adjustable (e.g., Max 1200mm)
  • Coil Width: Adjustable (e.g., 200mm - 500mm)
• Strapping Material: Polypropylene (PP) or Polyester (PET) strap
• Number of Straps: 2-4 per coil (Adjustable positions)
• Control: PLC with Touchscreen HMI
• Power Requirements: Specified based on configuration (e.g., 400V, 50Hz, 3-Phase)
• Air Consumption: Required for pneumatic components (e.g., 6-8 Bar)




  4. Operational Advantages and Efficiency Gains

Implementing FHOPE's automatic coiler and strapper yields significant benefits:

• Reduced Labor Costs: Minimizes manual intervention required for coiling, cutting, handling, and strapping, potentially reallocating personnel to higher-value tasks.
• Increased Throughput: Continuous, automated operation allows the packaging process to keep pace with extrusion speeds, maximizing production output.
• Consistent Package Quality: Ensures uniform coil dimensions and secure, consistently tensioned strapping, leading to stable coils that are easier to handle, store, and transport. Reduces material waste from poorly formed coils.
• Improved Workplace Safety: Eliminates manual handling of long pipe lengths and repetitive strapping tasks, reducing risks of strains and injuries.
• Process Optimization: Provides reliable, repeatable packaging performance, contributing to overall production line efficiency.

5. User Experience and Customization

FHOPE designs its machines with the end-user in mind:

• Ease of Operation: The HMI provides an intuitive interface for setup, control, and monitoring. Recipe management allows quick changeovers between different pipe sizes or coil specifications.
• Maintenance: Designed for accessibility to key components, facilitating routine maintenance and troubleshooting. Diagnostic features within the control system aid in identifying potential issues quickly.
• Customization: FHOPE offers customization to meet specific production needs, including different coil size ranges, integration with existing line controls, specific strapping requirements, and downstream handling solutions.

6. Integration into Production Lines

This automatic coiling and strapping machine is designed to seamlessly integrate into HDPE/PEX pipe extrusion lines. It can be synchronized with the line speed and communicate with upstream and downstream equipment for fully automated production flow, from extrusion to final packaged coil ready for shipment.

Conclusion

FHOPE's fully automatic HDPE and PEX pipe coiling and strapping machine represents a significant upgrade from manual or semi-automatic methods. By combining precision engineering, robust components, and intelligent automation, it offers pipe manufacturers a reliable and efficient solution to optimize their end-of-line packaging processes. The focus on reducing labor, increasing speed, ensuring quality, and enhancing safety makes it a valuable investment for improving productivity and competitiveness in the pipe manufacturing industry.
