Streamlining Operations: A Deep Dive into Automatic Hose Coiling and Film Packing Machines

Manual hose coiling and packing is often a bottleneck in production – it's labor-intensive, prone to inconsistencies, and can lead to product damage during handling and transit. For manufacturers and distributors dealing with significant volumes of hoses (from industrial and hydraulic to garden and air hoses), automating this process is no longer a luxury, but a strategic necessity. FHOPE's automatic hose coiling and film packing machine offers a robust solution designed to address these challenges head-on.

This integrated system automates the coiling and subsequent protective wrapping of various hose types, ensuring consistency, enhancing throughput, and reducing operational costs. Let's explore the mechanics, benefits, and considerations of implementing such technology.

1. Unpacking the Mechanics: How Automatic Hose Coiling and Wrapping Works

Understanding the workflow provides insight into the machine's efficiency:

1. Hose Infeed: The hose is typically fed into the machine, often directly from an extruder line or a payoff stand. Advanced systems might include dancers or accumulators for tension control.
2. Measuring & Cutting (Optional): Precise length measuring systems (e.g., encoder wheels) ensure accurate hose lengths per coil. An integrated cutter can automate the cutting process based on preset lengths.

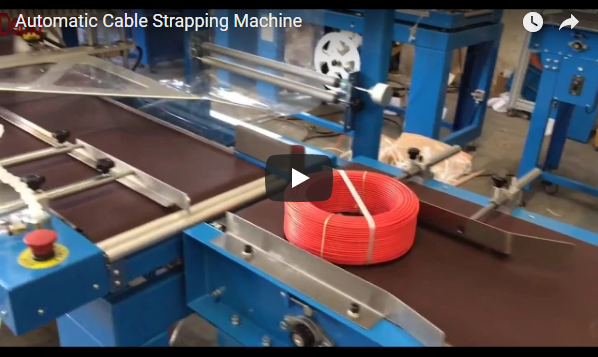

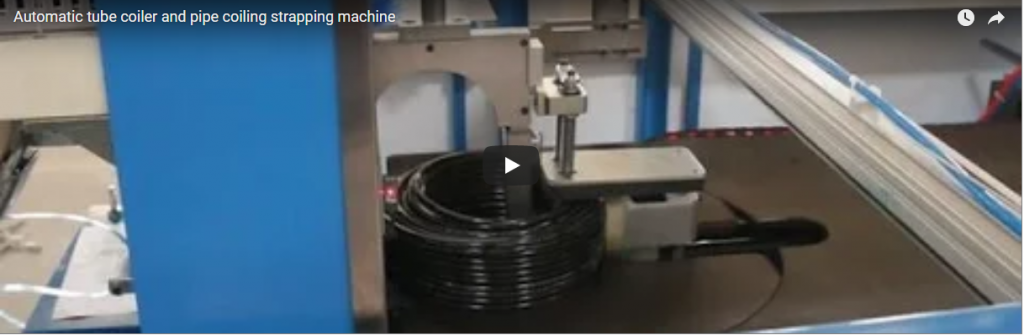

3. Automatic Coiling: The hose is guided onto a coiling head or mandrel. The machine controls the inner diameter (ID), outer diameter (OD), and traverse width to create neat, tightly wound coils according to specified parameters. This mechanism ensures uniformity far exceeding manual capabilities.
4. Coil Transfer: Once the desired length is coiled, the finished coil is automatically transferred to the wrapping station.
5. Film Wrapping: The coil is then wrapped circumferentially with stretch film (typically PE stretch film). The wrapping unit applies the film under controlled tension, often with adjustable overlap, ensuring a secure and protective layer around the coil. This protects against dust, moisture, and abrasion.
6. Film Sealing & Cutting: The film is automatically sealed and cut, completing the packaging cycle.
7. Coil Ejection: The finished, wrapped coil is ejected from the machine, ready for palletizing or storage.

2. Key Features and Customization for Optimized Performance

These machines aren't one-size-fits-all. Effective solutions offer customization:

• Operational Modes: Options range from fully automatic (requiring minimal operator intervention) to semi-automatic (where an operator might initiate cycles or handle specific tasks).
• Variable Speed Control: Adjustable coiling and wrapping speeds allow optimization based on hose type, size, and upstream/downstream process synchronization. Typically managed via Variable Frequency Drives (VFDs).
• Hose Handling Range: Machines are specified to handle defined ranges of hose diameters (ID/OD) and lengths. Ensure the machine specifications match your product mix.
• Control System: Modern machines utilize Programmable Logic Controllers (PLCs) and Human-Machine Interfaces (HMIs) for setting parameters (coil dimensions, wrap counts, speed), storing recipes, and diagnostics. Look for intuitive interfaces.
• Film Delivery System: Features like powered pre-stretch can optimize film consumption, reducing material costs and providing superior load containment.
• Integration Readiness: Can the machine receive signals from upstream equipment (like an extruder) and send signals downstream (like to a robotic palletizer)? This is crucial for fully automated lines.
• Safety Features: Interlocked guarding, E-stops, and sensors are essential for operator safety, complying with relevant safety standards.

3. From the Shop Floor: Operational Advantages and Real-World Gains

Implementing an automatic coiling and packing system yields tangible benefits:

• Consistency and Quality: Automated coiling produces uniform coil dimensions and winding patterns every time. Film wrapping is applied with consistent tension and overlap, enhancing product presentation and protection.
• Increased Throughput: These machines operate significantly faster than manual methods, directly increasing production output and reducing lead times. Cycle times can often be reduced by 50-75% or more compared to manual coiling and wrapping.
• Labor Savings and Ergonomics: Automating this repetitive task frees up personnel for higher-value activities. It also eliminates ergonomic risks associated with manual coiling and lifting.
• Reduced Material Waste: Precise control over coiling parameters minimizes hose scrap due to inconsistent lengths. Optimized stretch wrapping reduces film consumption compared to manual wrapping.
• Enhanced Product Protection: Secure film wrapping shields hoses from environmental factors and damage during storage, handling, and shipping, reducing returns and quality complaints.

4. Selecting the Right Configuration: Considerations for Implementation

Choosing the right machine requires careful evaluation:

• Product Specifications: Detail your full range of hose types (materials like PVC, rubber, PE), diameters, minimum/maximum lengths, and flexibility.
• Required Output: What is your target coils-per-hour or meters-per-hour rate? This dictates the necessary machine speed and level of automation.
• Factory Layout: Consider available floor space, ceiling height, and the flow of materials to and from the machine.
• Integration Needs: Will it be a standalone unit or part of a larger automated production line?
• Budget vs. ROI: Analyze the initial investment against projected savings in labor, material, and improved quality/throughput to calculate the return on investment.

5. Technical Specifications Overview (Typical Example)

While specific models vary, typical parameters might include:

• Applicable Hose Diameter: 10mm - 50mm OD
• Maximum Coil Outer Diameter: 600mm
• Coil Width Adjustment: 100mm - 300mm
• Maximum Coiling Speed: Up to 60 m/min (Adjustable)
• Applicable Packing Film: PE Stretch Film (e.g., Width 100mm, Thickness 20-35µm)
• Control System: Siemens/Allen-Bradley PLC & Touch Screen HMI
• Power Supply: 380V, 50Hz, 3-Phase (or as per customer requirement)
• Air Supply: 0.5-0.7 Mpa

6. Beyond Standalone: Integration and Future-Proofing

For maximum efficiency, especially in high-volume scenarios, consider integrating the automatic hose coiling and film packing machine with:

• Extrusion Lines: Direct connection allows for a continuous, automated flow from production to packaging.
• Printing/Labeling Systems: Apply product information or branding automatically before or after wrapping.
• Robotic Palletizing: Automatically stack finished coils onto pallets, further reducing manual handling.

Investing in a machine with modern controls (like networked PLCs) also opens possibilities for data logging, performance monitoring, and remote diagnostics, aligning with Industry 4.0 initiatives.

Conclusion: A Smart Investment for Hose Manufacturers

The FHOPE automatic hose coiling and film packing machine represents a significant upgrade from manual processes. By automating coiling and wrapping, manufacturers can achieve higher throughput, consistent quality, reduced labor costs, and better product protection. Its customizable nature allows tailoring to specific production needs, making it an essential piece of equipment for companies looking to streamline operations, improve efficiency, and maintain a competitive edge in the hose manufacturing and distribution market.
