Advanced Automated L-Bar Shrink Wrapping System for Paper Bundle Integration
Streamlining End-of-Line Packaging for the Print Industry

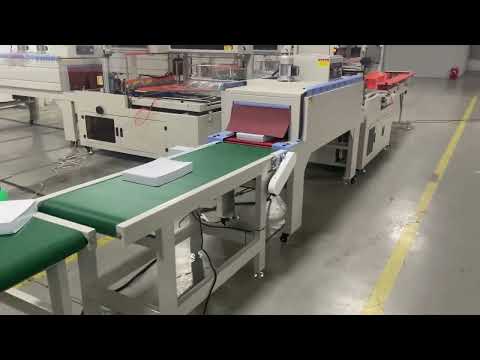

This fully integrated automatic L-bar shrinking machine represents a significant advancement in automated packaging, specifically engineered for the demands of handling and securing paper bundles. By seamlessly integrating automated infeed, precise L-sealing, and efficient shrink tunnel technology, the system dramatically optimizes the packaging workflow, reduces manual handling, and ensures consistent, high-quality package presentation suitable for distribution and retail.
Drawing upon principles outlined in packaging automation research, which emphasize the reduction of bottlenecks and improvement of throughput in manufacturing (Source: Journal of Manufacturing Systems), this system directly addresses the need for efficient end-of-line solutions in high-volume environments like commercial printing and publishing houses.
Core Technology and Performance Features
The machine incorporates several key technologies and features designed for reliability, flexibility, and optimal performance:
Precision Sealing System
- L-Bar Sealing Configuration: Provides a robust and complete seal on two sides of the package, ideal for rectangular items like paper bundles.
- Dual Temperature-Controlled Sealing Bars: Ensures consistent heat distribution across the sealing area, critical for achieving strong, reliable seals without damaging the product or film. This aligns with findings in polymer sealing research emphasizing uniform temperature profiles (Source: Packaging Technology and Science).
- Multi-Zone Temperature Control: Allows for fine-tuning of heat settings based on film type, thickness, and operational speed.
- Digital Temperature Display & Control: Provides clear readouts and precise adjustment capabilities within a range of 0-200°C, enabling operators to maintain optimal parameters.
- Center folded Film Capability: Designed to work efficiently with cost-effective center-folded shrink films.
- Film Thickness Compatibility: Optimized for standard Polyolefin (POF) or PVC shrink films, typically within the 15-30 micron range.
Advanced Shrink Tunnel Dynamics
- Forced Air Circulation: Utilizes high-velocity blowers to distribute heated air evenly around the package, ensuring uniform shrinkage and a tight, conforming fit. Patent literature often highlights innovations in airflow design for improved shrink efficiency (e.g., USPTO classifications related to conveyor ovens).
- Adjustable Air Flow Direction: Enables optimization of the shrink process based on package size, shape, and film characteristics.
- Variable Belt Speed: Allows synchronization with upstream processes and fine-tuning of dwell time within the tunnel for perfect shrinkage results.
- Integrated Cooling System: Post-tunnel cooling helps to set the film quickly, improving package rigidity and allowing for immediate handling or secondary packaging.
Automation and Control
- Automated Infeed System: Seamlessly receives paper bundles from upstream processes, minimizing manual intervention.
- Variable Speed Control (System-Wide): Allows adjustment of the entire packaging line's speed to match production requirements.
- Integrated Tension Control Mechanism: Maintains consistent film tension during unwinding and sealing, preventing wrinkles and ensuring proper package formation.
- Emergency Stop Sensors: Strategically placed safety sensors ensure immediate system shutdown in case of operational issues.
Technical Specifications Overview
- Machine Type: Fully Automatic L-Bar Sealer with Integrated Shrink Tunnel
- Primary Application: Paper Bundle Shrink Wrapping
- Film Type: Center-folded POF, PVC, or similar shrink films
- Film Thickness Range: 15-30 micron (Typical)
- Sealing System: L-Bar with Dual Temperature Control
- Temperature Control: Digital, Multi-Zone
- Temperature Range: 0-200°C
- Shrink Tunnel: Forced Air Circulation with Adjustable Airflow
- Conveyor Speed: Variable
- Key Features: Automated Infeed, Film Tension Control, Post-Tunnel Cooling, Emergency Stops
This automated L-bar shrink wrapping system provides a robust, efficient, and high-quality packaging solution, enhancing productivity and package integrity for paper bundle applications within the printing, publishing, and paper converting industries.
