MASK PRO MACHINE AND PRODUCTSION LINE IN STOCK
As to the development of the COVID-19，FHOPE developed the mask making machine base on Chinese Goverment's requirement.
Now there are several series Mask machine machine per different speed requirement. It includes the N95/KN95 face mask making machine, 3 layers surgical masks making machine...
And we had helped customer starting the mask production more than 30 lines since from Jan.2020.

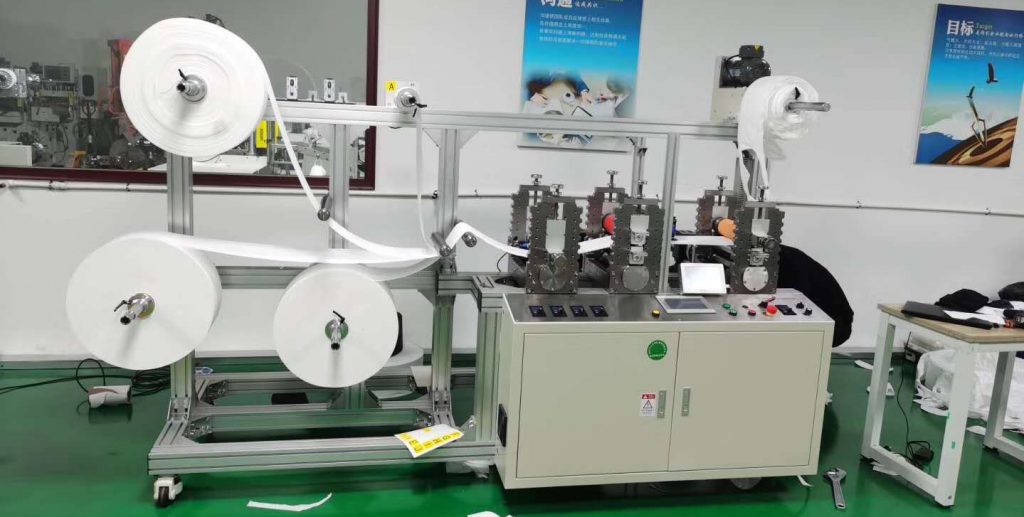

SEMIAUTO MASK MACKING MACHINE
1. Automatic counting with effectively control production efficiency and progress.
2. The frame is made of aluminum alloy and stainless steel, which is light and beautiful without rusting.
3. Servo control can adjust the running speed of the equipment according to the actual needs.
4. Automatic feeding, more accurate positioning, can make raw material width control to the minimum, cost saving.
5. The length and dimension of the finished product shall be controlled uniformly with a deviation of ± 1mm, which can effectively control the length of the finished product.
6. The equipment is easy operation by non skilled worker.

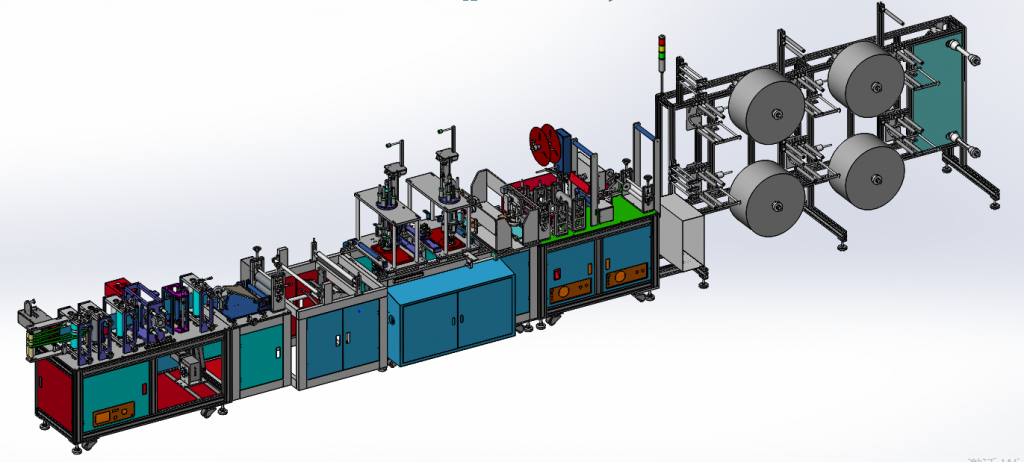

AUTOMATIC MASK MACHINE MACHINE
TECHNICAL DATA
Applicable for N95 / kn95 medical mask production.
Fully automatic and efficient production with high speed
The mask making machine has self-locking, fault self inspection and safety light curtain.
Servo motor for fast speed production, high precision making, easy and stable in operation
The mechanism is adjustable in height and has good universality,
Good rigidity and stability quality
Adjustable equipment size per different requirement
1. Equipment applicable to the production of N95 / kn95 mask
2. Mask machine size (mm) length: 10500mm width: 1500mm height: 1950mm
3. production capacity: 30-80 pieces / min
4. weight < 5000kg
5. Installation method: ground installation
6. operating height from the ground: 850/900mm
7. working power supply 380VAC ± 5%, 50Hz, 15kw
8. compressed air 0.6 ~ 0.8MP
9. compressed air flow 200L / min, 6 bar
10. operating environment temperature 10-35 ℃, humidity 5-35% RH, no combustible or corrosive gas
