Automated Square Tube Bundling and Packing: Optimizing Efficiency and Quality

Manufacturers of square steel tubing are constantly seeking ways to improve efficiency, reduce labor costs, and ensure the safe and secure handling of their products. An automated square tube bundle making and packing line offers a comprehensive solution to these challenges, transforming the process from a labor-intensive manual operation to a streamlined, high-performance system. This article delves into the components, function, and benefits of a modern automatic square tube bundling and packing line.

Key Components of an Automated Square Tube Bundling System

A typical automated square tube bundling and packing line comprises several integrated components working in harmony:

• Tube Infeed System: This is the starting point, responsible for delivering individual tubes to the line. Options include:

  • Trackless Transport Trolley: An automated guided vehicle (AGV) that retrieves square tubes from a storage area and delivers them to the bundling line. Key specifications include:
    • Load Capacity: Up to 10 tons or more, depending on tube dimensions and bundle weight.
    • Navigation System: Laser guidance, magnetic tape, or vision-based systems for precise positioning.
    • Speed: Adjustable, typically up to 1 m/s.
    • Safety Features: Emergency stop buttons, obstacle detection sensors, and audible warnings.
  • Conveyor Systems: Roller conveyors or chain conveyors to transport tubes from an upstream process (e.g., cutting, welding)

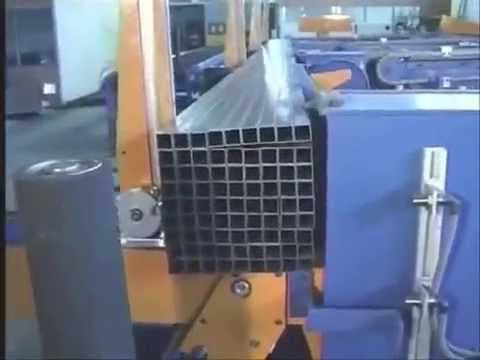

• Bundle Forming Station: This critical section shapes the tubes into tightly packed bundles.

  • Roll Forming Machine: Employs a series of rollers to progressively shape the tubes into a cylindrical or rectangular bundle.
    • Roller Material: Hardened steel with wear-resistant coating.
    • Hydraulic Pressure: Adjustable pressure to accommodate different tube sizes and wall thicknesses. Typical range: 100-200 bar.
    • Bundle Diameter (for cylindrical bundles): Programmable, typically ranging from 200mm to 1000mm.
    • Bundle Dimensions (for square bundles): Programmable, adjustable height and width.
    • Control System: Programmable Logic Controller (PLC) with a Human-Machine Interface (HMI) for parameter setting and monitoring.
    • Bundle Tightness Control: Precise, adjustable closing mechanism ensuring uniform density across lengths.

• Strapping Station: Secures the formed bundle with straps.

  • Automatic Strapping Machine: Applies steel or plastic straps around the bundle.

    • Strapping Material: Steel, polypropylene (PP), or polyester (PET).
    • Strap Width: Typically 19mm to 32mm for steel straps.
    • Tension Force: Adjustable, typically up to 6000N for steel straps.
    • Sealing Method: Welding for steel straps, heat sealing for plastic straps.
    • Number of Straps: Programmable, typically 2-4 straps per bundle.
    • Strapping Head Technology: High-speed, automatic feed, tension, sealing and cutting.

  • Technical Consideration: Strapping head mechanism, designed for durability and low maintenance due to repetitive actions.

• Wrapping Station: Protects the bundle from environmental factors and damage during transit.

  • Automatic Wrapping Machine: Wraps the strapped bundle in plastic film or paper.
    • Wrapping Material: Polyethylene (PE) film, paper, or woven fabric.
    • Film Thickness: Typically 50-100 microns.
    • Wrapping Speed: Adjustable, typically up to 20 RPM.
    • Overlap: Adjustable, to ensure proper coverage and protection.
    • Tension Control: Maintains even film tension during wrapping.
    • Dust and waterproof properties: Material must have specific layers for environmental protection.

• Palletizing Station: Stacks wrapped bundles onto pallets for efficient handling and shipping.

  • Palletizer: A robotic or gantry system that picks up bundles and stacks them onto pallets.
    • Robot Type: Articulated robot or gantry robot.
    • Payload Capacity: Sufficient to handle the weight of the bundles.
    • Reach: Sufficient to cover the entire pallet area.
    • Stacking Pattern: Programmable, to optimize pallet load and stability.
    • Pallet Dimension Handling: System should automatically adjust to varying pallet sizes.




      Functionality and Automation

The automated bundling and packing line operates in a sequential manner:

1. Tube Feeding: The tube infeed system delivers individual tubes to the bundle forming station precisely.
2. Bundle Forming: The roll forming machine shapes the tubes into a bundle of specified dimensions and tightness. Parameters such as the number of tubes and the bundle diameter are programmed via the HMI.
3. Strapping: The strapping machine applies straps around the bundle to secure it. Strap placement and tension are adjustable to ensure bundle integrity.
4. Wrapping: The wrapping machine wraps the bundle in protective material, shielding it from moisture, dust, and physical damage.
5. Palletizing: The palletizer picks up the wrapped bundle and places it onto a pallet according to a pre-defined stacking pattern.

Benefits of Automated Square Tube Bundling and Packing

Implementing an automated system offers significant advantages to square tube manufacturers:

• Increased Productivity: Automation significantly increases throughput compared to manual bundling and packing. These systems should drastically reduce the time per bundle, allowing higher volumes processed.

• Improved Quality: Consistent bundle formation and secure strapping minimize the risk of damage during handling and transportation.

• Reduced Labor Costs: Automation reduces the number of workers required for bundling and packing, resulting in significant cost savings.

• Enhanced Safety: Automated systems reduce the risk of worker injuries associated with heavy lifting and repetitive tasks.

• Optimized Efficiency: Streamlined processes reduce material waste and improve overall operational efficiency.

• Customization: Many systems have programmable parameters; operators can adjust settings to meet the specific requirements of different tube sizes and bundle configurations.

• Reliability: Robust machine builds and quality components lead to less down-time and reliable output, even under the stressors of mass production.

• Reduced Material Costs: Optimizing the use of wrapping materials and strapping can give a significant advantage by decreasing production costs.




  Technical Considerations

• PLC and HMI: The Programmable Logic Controller (PLC) is the brain of the system, controlling all machine operations. The Human-Machine Interface (HMI) allows operators to monitor the system status, adjust parameters, and troubleshoot issues.

• Sensors and Encoders: Sensors are used to detect tube positions, bundle dimensions, and other critical parameters. Encoders provide feedback on motor speeds and positions, allowing for precise control of the system.

• Safety Systems: Automated bundling lines must be equipped with comprehensive safety systems, including light curtains, emergency stop buttons, and safety interlocks, to protect workers from hazards.

• Maintenance and Serviceability: Easy access to components and clear documentation facilitate maintenance and minimize downtime.

Conclusion

An automated square tube bundle making and packing line is a valuable investment for square tube manufacturers seeking to improve efficiency, reduce costs, and enhance safety. By understanding the components, functionality, and benefits of these systems, manufacturers can make informed decisions about adopting automation to optimize their operations and gain a competitive edge.
