Understanding Semi-Automatic Rotary Arm Stretch Wrappers

Semi-automatic rotary arm stretch wrappers offer a specialized solution for pallet wrapping, distinct from more common turntable models. The core concept is simple yet effective: the pallet load remains stationary while a rotating arm moves around it, applying stretch film. This method is particularly advantageous for specific types of loads and operating environments.

How Rotary Arm Stretch Wrappers Work

Unlike turntable machines where the pallet spins on a platform, a rotary arm wrapper keeps the pallet firmly on the floor or conveyor. A vertical arm, equipped with a stretch film carriage, orbits the load. The film carriage dispenses the stretch film, often utilizing a powered pre-stretch system to maximize film efficiency and ensure proper load containment. This stationary approach is the key to its unique benefits.

Key Applications and Advantages

Rotary arm stretch wrappers excel in scenarios where turntable machines might struggle. Consider using this type of wrapper for:

Challenging Load Types

• Heavy Loads: For loads exceeding the weight capacity of typical turntables, the rotary arm system is ideal as the pallet does not need to be lifted onto or spun by a potentially weight-limited platform.
• Tall or Unstable Loads: Spinning a tall or inherently unstable pallet (e.g., mixed products, poorly stacked items) on a turntable increases the risk of shifting or collapse. Keeping the load stationary significantly minimizes this risk during the wrapping cycle.
• Very Light Loads: Lightweight pallets can easily shift or even fall off a rotating turntable. The stationary nature of rotary arm wrapping prevents this, allowing for secure wrapping of even the lightest products.

Specific Operational Environments

• Washdown Environments: In facilities requiring frequent cleaning (like food processing or pharmaceuticals), turntable drives and components located at floor level can be problematic. Rotary arm wrappers typically have their primary drive mechanisms located on the overhead arm structure, keeping critical components away from direct floor-level washdown, simplifying cleaning and maintenance.

Productivity Considerations

In terms of throughput, semi-automatic rotary arm wrappers generally offer intermediate productivity. They are typically faster than basic semi-automatic turntable models but slower than high-speed automatic rotary ring wrappers. Their niche lies in effectively handling challenging loads that other systems cannot manage as efficiently or safely.

Choosing the Right System

The decision between a rotary arm, turntable, or rotary ring wrapper depends heavily on:

1. Load Characteristics: Weight, stability, height.
2. Speed Requirements: Pallets per hour.
3. Operating Environment: Standard industrial vs. washdown.
4. Level of Automation: Integration with conveyors, etc.

   Rotary arm machines provide a crucial solution for operations dealing with very heavy, light, or unstable pallet loads where turntable rotation is impractical or unsafe. They bridge the gap for applications requiring more specialized handling than standard turntables can offer.

For further information on load containment standards, consult resources from industry authorities like the Packaging Machinery Manufacturers Institute (PMMI) (Note: This is an example of an authoritative external link - replace or verify as needed).

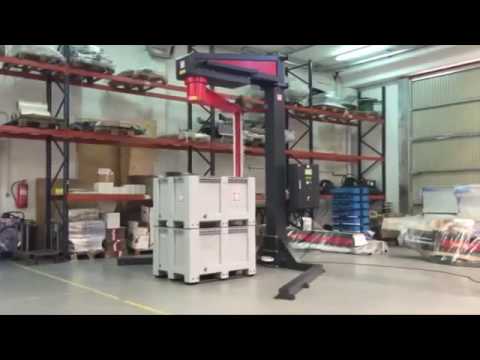

Professional Semi-automatic Rotary Arm Stretch Wrapping Machine
