Streamlining Heavy-Duty Packaging: A Guide to PC Wire Coil Stretch Wrapping Machines
Handling and securely packaging large, heavy Prestressed Concrete (PC) wire coils presents significant logistical and safety challenges in the construction and manufacturing sectors. Ensuring product integrity during transport and storage is paramount. Stretch wrapping technology offers a robust and efficient solution for these demanding applications.
Understanding the Demands of PC Wire Coil Packaging
PC wire coils are often bulky and heavy, requiring specialized equipment designed for industrial environments. Key considerations for robust packaging solutions include handling coils with specific dimensions:
- Outside Diameter (OD): Typically ranging from 1500mm to 2500mm.
- Width: Generally between 100mm and 300mm.
- Weight: Can scale significantly, often from 1 to 5 tonnes (Max. Loading).
Effective packaging must protect the wire from environmental factors like moisture and dust, prevent damage during handling and transit, and ensure the coil remains stable and secure.
The Core Technology: Eye-to-Sky Stretch Wrapping
Stretch wrapping is a widely adopted method for securing these large coils. The 'eye-to-sky' wrapping technique is particularly effective. In this process, the packaging material passes through the inner diameter (ID) of the coil and wraps around the outer surface, providing comprehensive coverage and excellent stability.
Common packaging materials used in conjunction with these machines include:
- Stretch Film: Provides containment, protection, and load stability.
- Paper: Can be added for extra surface protection or moisture absorption.
- PP (Polypropylene) Belt: Offers additional reinforcement and securing.
This combination ensures the PC wire is well-protected throughout the supply chain.
Exploring PC Wire Coil Wrapping Machine Options
Selecting the appropriate machine depends on specific operational needs, throughput requirements, and budget. Here are key factors and common machine types:
Key Considerations for Selection
- Handling Capacity: Crucially, ensure the machine's specifications align precisely with your typical coil dimensions (OD, Width) and maximum weight requirements.
- Automation Level: Assess the degree of automation needed based on production volume and labor availability.
- Safety Features: Non-negotiable elements include comprehensive guarding and emergency systems.
- Material Compatibility: Verify the machine can effectively handle the desired packaging materials (film, paper, belts).
- Ease of Operation & Maintenance: Look for intuitive controls and designs that facilitate routine maintenance.
Types of Coil Wrapping Machines
- Semi-Automatic Wrappers: These machines typically require an operator to load and unload the coils. A rotating arm or similar mechanism applies the stretch film automatically. They are suitable for operations with moderate throughput where some manual interaction is feasible and cost-effective. Operator involvement focuses on positioning the coil and initiating the wrap cycle.
- Fully Automatic Wrapping Systems: Designed for high-volume production lines, these systems automate nearly the entire process. This can include coil loading/unloading via conveyors, automatic film application, cutting and sealing, top sheet placement, and integration with downstream processes like palletizing or labeling. They significantly reduce labor requirements and enhance consistency.
- Vertical Coil Wrappers: In this configuration, the PC wire coil is loaded and held in a vertical orientation (eye to the sky). The wrapping mechanism then applies the film as the coil or the mechanism rotates. This design is often preferred for very large diameter coils and typically incorporates robust safety guarding around the wrapping zone.
- Rotating Turntable Wrappers: The coil rests horizontally on a turntable platform. The turntable rotates the coil while a wrapping arm dispenses the stretch film around it. This configuration provides excellent support and stability, making it well-suited for handling particularly heavy and large coils.
Essential Features for Performance and Safety
Regardless of the type, certain features are critical for optimal performance and operator safety:
- Robust Safety Mechanisms: Look for integrated safety features like light curtains that stop the machine if an object enters the wrapping zone, physical guarding, safety mats, and clearly accessible emergency stop buttons.
- User-Friendly Controls: Simple, intuitive control panels, often utilizing touchscreens (HMI), reduce operator training time, minimize input errors, and allow for easy adjustment of wrapping parameters (e.g., film tension, rotation speed, number of wraps).
- Advanced Material Handling Systems: Effective unwinder and film tensioning systems are vital, especially when using wide stretch films suitable for large coils. Consistent tension ensures load stability and optimizes material usage.
- Integration Capabilities: Consider how the wrapping machine fits into your overall production flow. Features like integrated coil lifters, tilters, or conveyors for automatic loading/unloading, and systems for applying dunnage or edge protectors can significantly streamline the packaging process.

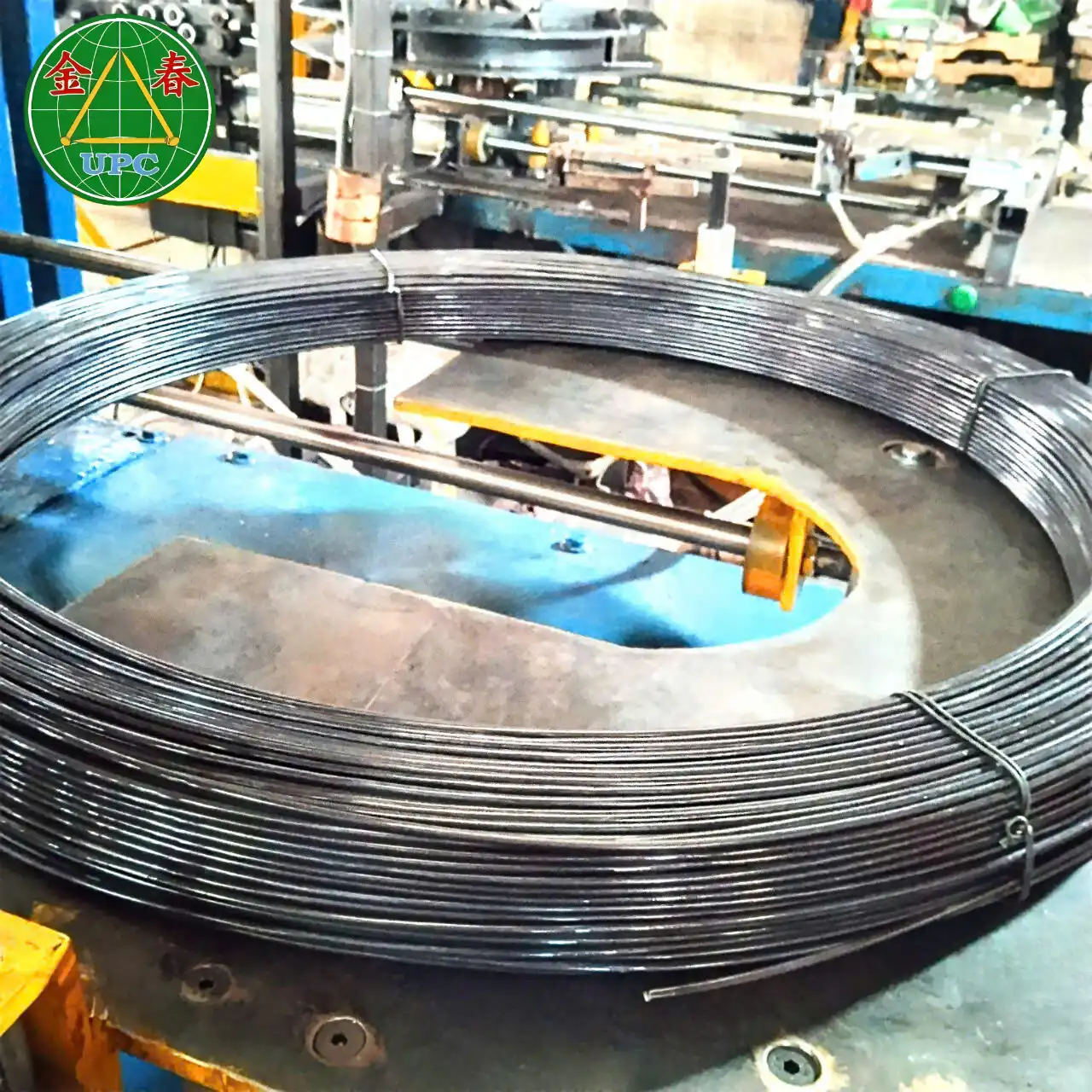

stee wire rewinding solution Benefits of Optimized PC Wire Coil Wrapping
Implementing an effective stretch wrapping solution offers numerous advantages:
- Enhanced Product Protection: Shields wire from dust, moisture, and surface damage.
- Improved Load Stability: Securely unitizes the coil, preventing unraveling during handling and transit.
- Increased Operational Efficiency: Automating or semi-automating the wrapping process significantly speeds up packaging compared to manual methods.
- Enhanced Workplace Safety: Reduces manual handling risks associated with large, heavy coils. Automated systems minimize direct operator interaction with moving machinery.
- Reduced Material Waste: Controlled film tensioning and precise application minimize unnecessary material consumption.
Video Demonstration

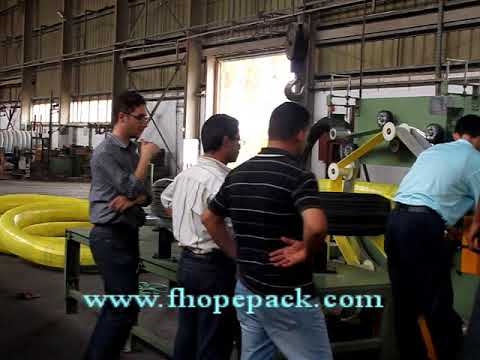

See a PC wire coil stretch wrapping machine in action:
Finding the Right Solution
Choosing the right equipment involves balancing technical requirements with operational goals. For those exploring specific machinery options, understanding the range of available PC wire coil wrapping solutions and their capabilities is a key step in making an informed decision. Consulting with experienced packaging machinery suppliers can provide valuable insights tailored to your specific application.
Conclusion
Selecting the appropriate PC wire coil stretch wrapping machine is a critical investment for businesses dealing with these specialized products. By carefully considering coil specifications, required throughput, automation levels, essential safety features, and integration possibilities, companies can implement robust and efficient packaging solutions. This ensures product integrity, enhances operational safety, and streamlines logistics for demanding industrial applications.
