Orbital Horizontal Film Wrapping Machine

Understanding Orbital Horizontal Stretch Wrappers for Long Product Packaging

Orbital horizontal stretch wrapping machines provide an efficient and protective packaging solution, particularly for long or awkwardly shaped products common in fabrication, extrusion, and milling operations. This equipment automates the application of stretch film, ensuring items like pipes, profiles, lumber, and panels are securely bundled and shielded during handling and transit.

How Orbital Horizontal Wrappers Work

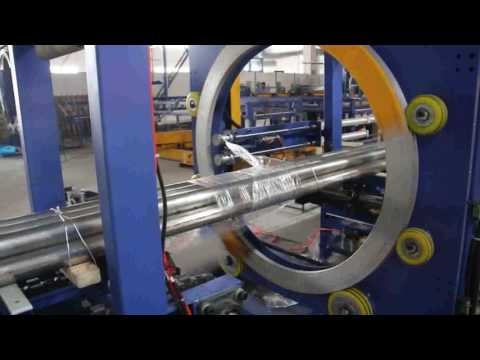

These machines operate using a rotating ring or shuttle that carries a roll of stretch film. The product is fed horizontally through the center of the ring. As the ring orbits the stationary product, it dispenses the film, wrapping it securely around the item's entire length. The level of overlap and film tension can typically be adjusted to suit the specific application and provide optimal load containment.

Key Applications in Fabrication and Manufacturing

Orbital horizontal wrappers are widely used across various industries for packaging items such as:

horizontal orbital stretch wrapper with timber feeder and strapping machine2
horizontal orbital stretch wrapper with timber feeder and strapping machine2

  • Metal tubes, pipes, and conduits
  • Aluminum extrusions and profiles (including those with sensitive finishes)
  • Plastic pipes and profiles
  • Wooden planks, lumber, and MDF panels
  • Doors and windows
  • Textile rolls
  • Other long, rigid, or bundled products

Core Benefits of Orbital Stretch Wrapping

Utilizing an orbital horizontal wrapper offers several distinct advantages for manufacturers and fabricators:

Enhanced Product Protection

A primary advantage is superior product protection. The tightly applied stretch film acts as a barrier against dirt, dust, moisture, and surface damage like scratches or scuffs. This is particularly critical for items with painted, polished, or otherwise sensitive surfaces, ensuring products arrive at their destination in optimal condition.

Improved Load Stability and Unitization

The wrapping process effectively unitizes single or multiple items, creating a stable, consolidated load. This prevents shifting during internal handling and external transport, simplifying logistics and reducing the risk of damage caused by movement. Bundling items like pipes or extrusions securely improves overall package integrity.

Packaging Material and Cost Efficiency

Compared to manual methods or other packaging materials like corrugated boxes, extensive strapping, or shrink bags, horizontal stretch wrapping machines often offer significant operational and material savings. They reduce the need for a diverse inventory of packaging consumables (e.g., tape, foam inserts, specialized strapping) and can operate at high speeds, lowering labor costs per package and increasing overall production throughput. Optimized film usage through pre-stretch capabilities can further reduce material expenses.

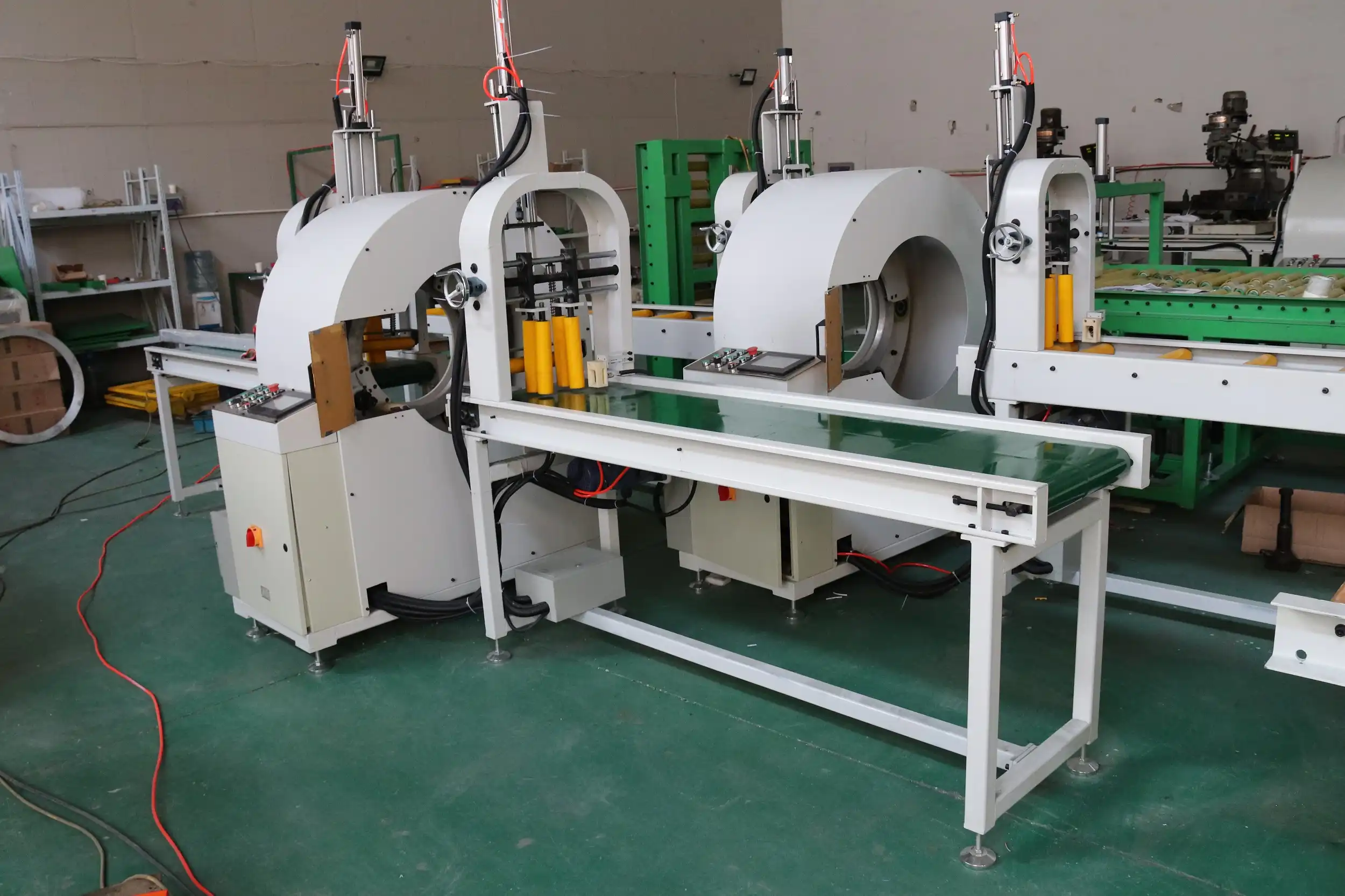

e200 horizontal stretch wrapping machine4
e200 horizontal stretch wrapping machine4

Versatility for Various Product Profiles

The orbital design inherently accommodates a wide range of product lengths and cross-sections without requiring complex machine adjustments for each variation. This provides valuable flexibility for manufacturers producing diverse product lines or needing to package items of inconsistent dimensions.

Operational Considerations

When evaluating or implementing orbital wrappers, key factors to consider include:

  • Ring Diameter: Must be sufficient to accommodate the maximum cross-section of the products being wrapped.
  • Wrapping Speed: Needs to align with production line requirements (typically measured in cycles or rotations per minute).
  • Film Pre-stretch: Higher pre-stretch percentages maximize film yield and reduce costs, but require appropriate film quality.
  • Automation Level: Options range from semi-automatic machines requiring manual initiation to fully automated systems integrated into conveyor lines.

Conclusion

In summary, orbital horizontal film wrapping machines deliver a robust and efficient solution for the challenges of packaging long or unwieldy products. They significantly enhance product protection, improve load containment for safer handling, contribute to reduced packaging material and labor costs, and boost operational efficiency. For specific requirements, such as ensuring pristine surfaces on sensitive materials, dedicated configurations are available, like an Automatic Orbital Horizontal Film Wrapping Machine for Stainless Steel Tube. These machines represent a valuable investment for streamlining packaging operations in many manufacturing and fabrication environments.
