# Streamlining Your Workflow: Loading Slit Coils from Coil Car to Wrapping Machine
Efficiently handling and packaging slit steel coils is a critical step in many metal processing workflows. The transition from the slitter to the final packaging stage requires careful coordination to maintain productivity, ensure worker safety, and prevent damage to the valuable coil material. This guide details the typical process of loading a slit coil from a coil car onto a coil wrapping machine, often utilizing conveyors and coil manipulation equipment.
## 1. Understanding the Core Equipment
Several key pieces of equipment work together in an automated or semi-automated coil loading and wrapping line:
* **Coil Car:** A specialized cart, often rail-guided, designed to receive slit coils (typically eye-to-sky) from a slitter or storage area and transport them to the packaging line. It often features a lifting mechanism to align the coil with the next stage.
* **Coil Upender/Tilter:** This device is crucial when the coil needs to be reoriented. Slit coils often come off the slitter "eye-to-sky" (axis vertical) but need to be "eye-to-wall" (axis horizontal) for through-the-eye wrapping. The upender safely tilts the coil 90 degrees.
* **Infeeding Conveyor:** Transports the coil (now typically eye-to-wall) from the loading/tilting station to the wrapping machine. This is usually a powered roller or chain conveyor designed to handle heavy loads.

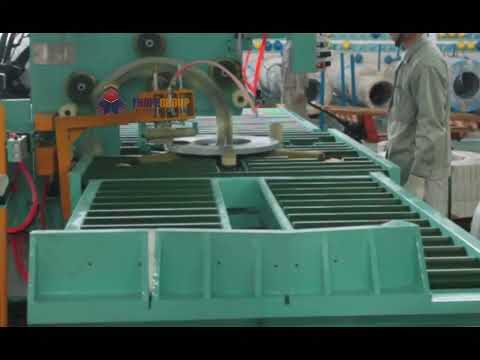

* **Automatic Coil Wrapping Machine:** The station where the coil is wrapped with protective material (like stretch film, VCI paper, or other specified materials) for storage and transport.
## 2. The Step-by-Step Loading Process
The sequence ensures a smooth and efficient transfer:
### Step 1: Coil Reception and Transport via Coil Car
The process begins when a slit coil is placed onto the coil car, usually directly from the slitting line's turnstile or offloading station. The coil car then transports the coil towards the packaging line entry point.
### Step 2: Transfer to the Conveyor System (Utilizing an Upender/Tilter if Needed)
* The coil car positions the slit coil at the transfer point.
* If the wrapping machine requires an eye-to-wall orientation, the coil car lifts the coil onto an upender.
* The upender rotates the coil by 90 degrees.
* Once tilted, the coil is gently placed onto the infeeding conveyor. If no tilting is required, the coil car may load directly onto the conveyor (less common for standard through-eye wrapping of slit coils).
### Step 3: Conveyance to the Wrapping Station
The powered conveyor moves the correctly oriented coil towards the automatic coil wrapping machine. Sensors often control the conveyor movement, ensuring the coil stops at the precise wrapping position.
### Step 4: Positioning and Initiation of Wrapping
Once the coil reaches the designated spot within the wrapping machine's envelope, the conveyor stops. Sensors confirm the coil's presence and correct positioning, signaling the wrapping machine to begin its automated cycle (e.g., applying paper or stretch film). After wrapping, the coil typically moves to an outfeeding conveyor for unloading.
## 3. Key Considerations for Optimal Performance
* **Automation Level:** Systems can range from semi-automatic (requiring operator initiation at certain steps) to fully automatic, where the entire sequence from coil car loading to wrapped coil unloading occurs with minimal human intervention. Automation enhances speed, consistency, and safety.
* **Safety Features:** Integrated safety measures like light curtains, physical guarding, emergency stops, and controlled movements are essential to protect personnel working near the machinery.
* **Preventing Coil Damage:** Smooth transfers between the coil car, upender, and conveyor are vital. Equipment should be designed to handle the coil's weight and dimensions without causing edge damage, telescoping, or surface scratches.
* **System Integration:** The loading system must seamlessly integrate with both the upstream slitting process and the downstream packaging and unloading operations for maximum line efficiency.
## 4. Applicable Coil Types
This type of handling system is commonly employed for various coiled materials beyond just steel, including:
* Slit Steel Coils
* Steel Wire Coils
* Aluminum Coils
* Copper Coils
* Hose and Cable Reels (with appropriate modifications)
* Bearing Rings (stacked or individually)
## 5. Operator Requirements
The level of automation significantly impacts operator needs. In highly automated systems, one operator might oversee the entire line, primarily monitoring performance and replenishing consumables (like wrapping material). Semi-automatic systems may require more direct operator involvement for initiating transfers or confirming steps.
By understanding the components and the process flow, facilities can optimize their slit coil handling operations, leading to improved throughput, enhanced safety, and better protection of the finished product.
