Efficiently Securing Coils: A Guide to Hose and Pipe Coil Packing Machines

Handling and packaging large, often unwieldy coils of hoses, pipes, and cables presents a significant challenge for manufacturers. Ensuring these products reach their destination undamaged and are stored securely requires specialized solutions. A Hose Coil and Pipe Coil Packing Machine is engineered specifically for this purpose, offering an automated and efficient method for wrapping coiled materials.

What is a Hose and Pipe Coil Packing Machine?

This type of industrial coil packaging equipment is designed to apply protective wrapping material, typically stretch film, around coiled products. The primary function is to secure the coil, prevent it from unwinding, and shield it from environmental factors like dust, moisture, and abrasion during storage and transportation. Constructed robustly, often using heavy-duty steel, these machines integrate mechanical and electronic components to automate the wrapping process.

Key Operational Features and Components

Understanding the core components helps appreciate the machine's capabilities:

• Wrapping Mechanism: Utilizes stretch film or similar plastic films. Adjustable tension control is crucial, allowing operators to set the appropriate film tension based on the product type and weight, ensuring a secure wrap without damaging the coil. An automatic cutter neatly trims the film after the wrapping cycle is complete.
• Coil Handling Capacity: These machines are versatile, designed to handle a wide range of coil sizes. Key specifications include the acceptable coil diameter range (e.g., 100mm to 1000mm) and coil width range (e.g., 50mm to 500mm), enabling packaging of diverse products from small hoses to large industrial pipes.
• Control System: Often equipped with a PLC (Programmable Logic Controller) and a user-friendly interface (like a digital readout or touchscreen), allowing for easy setup, operation mode selection (semi-automatic or fully automatic), and monitoring of the wrapping process. This contributes significantly to operational efficiency.
• Construction and Durability: Built for industrial environments, typically featuring a sturdy steel frame to withstand continuous operation and handle heavy coils.
• Safety Features: Essential safety elements like emergency stop buttons and potentially static discharge mechanisms ensure operator safety during use.

How Does Automated Coil Wrapping Work? (Operational Overview)

While specific operations vary by model, a typical cycle involves:

1. Loading: The hose or pipe coil is placed onto the machine's designated loading area or rollers.
2. Initiation: The operator starts the wrapping cycle via the control panel.

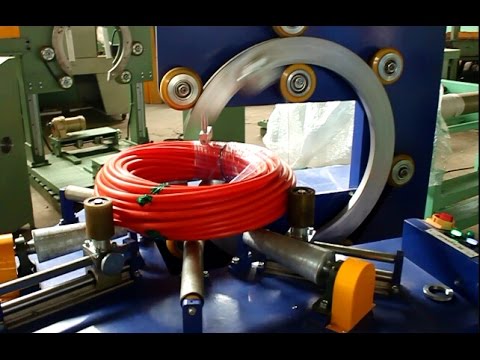

3. Wrapping: The wrapping mechanism, often a rotating ring or shuttle carrying the film roll, passes through the eye of the coil, applying layers of stretch film around the circumference. The coil may rotate simultaneously or intermittently depending on the design.
4. Cutting & Securing: Once the preset number of wraps is complete, the machine automatically cuts the film and secures the tail end (e.g., via a heat seal or wipe-down mechanism).
5. Unloading: The securely wrapped coil is removed from the machine.

Benefits of Using Automated Coil Packing Solutions

Integrating a dedicated coil packing machine offers numerous advantages:

• Enhanced Product Protection: Consistent, tight wrapping shields products from damage, dirt, and moisture.
• Improved Load Stability: Securely wrapped coils are easier and safer to handle, stack, and transport.
• Increased Efficiency: Automating the wrapping process significantly speeds up packaging compared to manual methods.
• Reduced Labor Costs: Frees up personnel for other tasks, decreasing reliance on manual labor for packaging.
• Material Savings: Precise control over film usage and tension optimizes material consumption.
• Professional Presentation: Uniformly wrapped coils present a more professional appearance to end customers.




  Core Applications in Industry

Hose and pipe coil wrapping machines are indispensable in various sectors:

1. Plumbing and Industrial Hose Manufacturing: Essential for packaging garden hoses, industrial transfer hoses, and flexible piping. The machine securely wraps coils (often up to 1000mm diameter), preventing uncoiling and protecting against abrasions and moisture, thereby maintaining hose integrity during storage and transit.
2. Electrical Wire and Cable Production: Crucial for protecting sensitive electrical wiring and cables. The tight wrap safeguards insulation, maintains coil integrity, and prevents tangling. It accommodates various cable types, ensuring products meet safety and performance standards upon arrival.
3. Irrigation and Tubing Systems: In the agricultural and landscaping sectors, large-diameter irrigation pipes require robust packaging. The machine's capacity to handle heavy coils and apply strong stretch film protects pipes from UV degradation and physical damage during outdoor storage and field deployment, ensuring system reliability.

Choosing the Right Coil Packing Machine

Factors to consider when selecting a machine include:

• The range of coil sizes (diameter, width, weight) you need to handle.
• Required throughput (number of coils per hour).
• Level of automation needed (semi-automatic vs. fully automatic).
• Type of wrapping material to be used.
• Available factory floor space.
• Budget constraints.

Reference Technical Specifications

Note: The parameters below serve as a general example and may not precisely match the equipment shown in the video. For exact specifications tailored to your needs, direct consultation is recommended.

• Type: Automatic Coil Packing
• Coil Diameter Range: 100mm to 1000mm
• Coil Width Range: 50mm to 500mm
• Wrapping Material: Stretch film, plastic film
• Film Thickness: 20 to 120 microns
• Power Requirements: Typically configured for standard industrial supplies (e.g., 240V, 60Hz, single phase or 3-phase options)
• Machine Dimensions (Approx.): Length: 2000mm; Width: 1200mm; Height: 1300mm
• Machine Weight (Approx.): 400kg
• Control System: PLC with digital readout/HMI
• Operation Mode: Semi-automatic or Fully automatic options
• Safety Features: Emergency stop, potentially safety guarding and static discharge
• Productivity: Varies by model and coil size (e.g., up to 20 coils per hour)
• Warranty: Typically 1 year or as specified by the manufacturer




  Conclusion

For manufacturers dealing with coiled hoses, pipes, wires, cables, or similar materials, a dedicated coil packing machine represents a valuable investment. By automating the wrapping process, these machines deliver significant improvements in efficiency, product protection, load stability, and overall operational workflow, ensuring products are handled, stored, and transported securely and professionally.
