Name: gas tube coiling and banding machine
Brand: FHOPE

Watch this video on YouTube

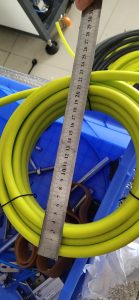

gas tube coiling and banding machine is an euipment for coiling the small size tube with small OD and width. The machine is high speed and automatic counting the length and cutting per setting.

It is able banding the coil with three portial in 10 sec.

https://www.fhopepack.com/Automatic-Coiling-Machine/

A Gas Tube Coiling and Banding Machine is specialized equipment designed for the automatic coiling and secure banding of gas tubes. Typically constructed from robust materials like steel, the machine features a coiling mechanism that adjusts to various tube diameters and lengths. The banding mechanism equipped within the same system efficiently wraps and secures the coils with bands, ensuring stability and ease of handling.

The parameters below do not 100% match the equipment in the video. For exact specifications, please contact us.

Type: Gas Tube Coiling and Banding
Tube Diameter Range: 10mm to 100mm
Tube Material Compatibility: Copper, Aluminum, Stainless Steel
Banding Material: Nylon, Metal
Coiling Speed: Up to 5 coils per minute
Power Requirements: 380V, 50Hz, three phase
Machine Dimensions: Length: 3500mm; Width: 1500mm; Height: 1800mm
Machine Weight: Approximately 500kg
Control System: PLC controlled with touchscreen interface
Safety Features: Emergency stop, guard enclosures
Warranty: 2 years
Output Capacity: Up to 100 tubes per hour

Applications:

For HVAC installations, the machine can handle tube lengths of up to 50 meters with a coiling diameter that ranges from 10mm to 100mm. This allows for the efficient storage and transport of large quantities of HVAC tubing. The automatic banding helps secure the coils, ensuring that they maintain their form during transport and installation, thus reducing material waste and saving time.
In the manufacturing of refrigeration systems, where precise and reliable tube processing is crucial, this machine can coil tubes with diameter precision within ±1mm. The robust banding mechanism ensures that each coil is tightly secured, preventing uncoiling during shipment. This precision and security are vital in maintaining the integrity of tubes which are essential for system efficiency and reliability.
For industrial gas delivery systems, the machine offers the capability to process tubes with varying material types like copper and stainless steel. This versatility allows for the application of the machine across different gas systems, ensuring tight and secure coils. The efficiency of the coiling and banding process significantly reduces downtime in production and enhances safety by ensuring the tubes are properly handled and stored.
