Coil tilter with slid table

Mastering Heavy Coil Handling: A Guide to Coil Tilters with Slid Tables

Handling large, heavy coils of materials like steel, aluminum, or paper presents significant challenges in industrial environments. These operations require precision, efficiency, and above all, safety. Specialized material handling equipment, such as the coil tilter with an integrated slid table, is essential for navigating these demands effectively. This guide explores the functionality, applications, and key considerations surrounding this vital piece of machinery.

What is a Coil Tilter with Slid Table?

A coil tilter with slid table is a robust machine designed to safely rotate heavy cylindrical loads, typically metal coils or paper rolls, between horizontal and vertical orientations (and vice versa). It generally consists of:

• A Strong Base: Providing stability during operation.
• A Tilting Platform: The structure that holds and rotates the coil.
• A Drive Mechanism: Usually electric or hydraulic, powering the tilting motion.
• An Integrated Slid Table: This key feature allows for easier and more precise loading and unloading of the coil onto the tilting platform.

This equipment is engineered to handle substantial weight, often ranging from 1.5 to 30 metric tons, making it indispensable in heavy industries.

How it Works: The Tilting and Sliding Mechanism

The operation typically follows these steps:

1. Loading: The coil is placed onto the slid table, often using a forklift or overhead crane. The slid table allows the operator to accurately position the coil before the tilting process begins.
2. Positioning: The slid table, powered by its own hydraulic or electric system, moves the correctly positioned coil onto the main tilting platform.
3. Tilting: The primary drive system (commonly an electric motor operating on industrial power supplies, e.g., 230V to 460V) engages the tilting mechanism. The platform smoothly rotates the coil, typically up to 90 degrees, changing its orientation from horizontal ("eye to the sky") to vertical ("eye to the wall") or the reverse.
4. Unloading: Once tilted, the coil can be safely removed for storage, transportation, or further processing.

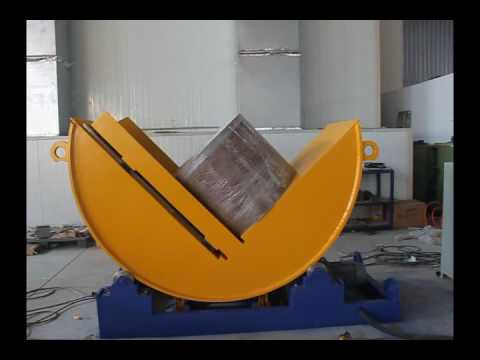

Watch this equipment in action:

Key Features and Capabilities

• Significant Load Capacity: Designed to handle weights commonly found in metal service centers and mills, often ranging from 1.5 to 30 tons.
• Precise Rotation: Provides controlled 90-degree rotation, crucial for changing coil orientation for processing lines or storage requirements.
• Slid Table Advantage: Simplifies loading and unloading by allowing horizontal movement for precise coil placement onto the tilter cradle, enhancing safety and reducing cycle times.
• Reliable Drive Systems: Utilizes robust electric or hydraulic drives designed for consistent performance under heavy loads. Electric drives commonly operate on standard industrial voltages (230V-460V).
• Versatility: While primarily used for coils, these tilters can often be adapted for other large, heavy objects requiring reorientation.

Applications Across Industries

The coil tilter with a slid table finds critical applications in various sectors:

• Steel Mills and Service Centers: Essential for handling large steel coils between processing stages, storage, and shipping.
• Paper Mills: Used for rotating heavy paper rolls safely and efficiently.
• Metal Fabrication and Stamping: Facilitates the positioning of coils for feeding into stamping presses or fabrication lines.
• Wire and Cable Industry: Assists in managing large spools or reels.
• Automotive Manufacturing: Handling coils of sheet metal used in car body production.

Safety Considerations in Coil Handling

Safety is paramount when operating heavy machinery like coil tilters. Key safety aspects include:

• Machine Guarding: Physical barriers preventing access to moving parts during operation.
• Limit Switches: Ensure the machine stops at predetermined points in its movement cycle.
• Emergency Stop Buttons: Easily accessible controls to halt machine operation immediately in case of an issue.
• Stable Loading Platform: The design must ensure the coil is held securely during the tilting process. The slid table contributes significantly to safe and stable loading.
• Operator Training: Proper training on operating procedures, safety protocols, and load limits is crucial. Adherence to established safety standards, like those outlined by OSHA, is vital.




  Benefits of Using a Coil Tilter with Slid Table

Integrating this equipment into material handling workflows offers several advantages:

• Enhanced Safety: Dramatically reduces the risks associated with manually handling or attempting to tilt heavy coils using inadequate methods.
• Improved Efficiency: Speeds up the process of coil reorientation compared to manual methods or using multiple pieces of equipment. The slid table feature further streamlines loading/unloading.
• Reduced Product Damage: Gentle, controlled rotation minimizes the risk of damage to valuable coil materials.
• Increased Versatility: Facilitates smoother transitions between different handling equipment (e.g., C-hooks, forklifts) that may require specific coil orientations.

Choosing the Right Equipment

Selecting the appropriate coil tilter involves considering several factors:

• Coil Specifications: Maximum weight, diameter, and width of the coils to be handled.
• Required Tilt Angle: Typically 90 degrees, but confirm if other angles are needed.
• Power Source: Availability of electric power (voltage/phase) or preference for hydraulic systems.
• Operating Environment: Space constraints, floor loading capacity, and integration with existing workflows.
• Control System: Desired level of automation and control interface (e.g., pendant, remote control).
• Manufacturer Reputation: Look for manufacturers with proven reliability, good build quality, and available technical support and maintenance services.




  Conclusion

The coil tilter with a slid table is a powerful tool for improving safety and efficiency in industries that handle large, heavy coils. By enabling controlled rotation and simplifying the loading process, this equipment plays a critical role in modern material handling, protecting both personnel and product while optimizing operational workflow. Careful consideration of application requirements and safety features ensures the selection of a machine that delivers long-term value and performance.
