Optimizing Load Stability: A Guide to Semi-Automatic Rotary Arm Stretch Wrappers

Effective pallet wrapping is crucial in logistics and manufacturing for ensuring load stability, product protection, and operational efficiency. For businesses seeking a balance between automation and operator control, particularly when dealing with heavy or unstable loads, the Semi-Automatic Rotary Arm Stretch Wrapper presents a compelling solution.

What is a Semi-Automatic Rotary Arm Stretch Wrapper?

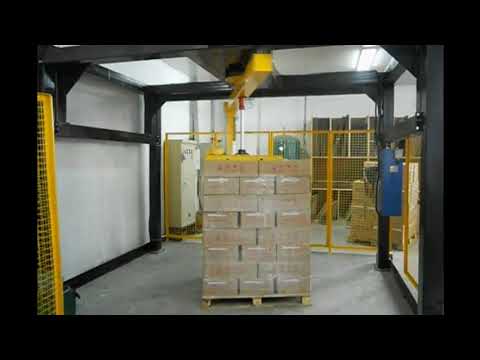

This type of stretch wrapping machine features a unique design where the load remains stationary while a motorized rotary arm travels around it, dispensing stretch film. Unlike turntable wrappers where the pallet spins, the rotary arm approach is ideal for loads that are exceptionally heavy, tall, unstable, or have an irregular shape.

The "semi-automatic" aspect means that while the wrapping cycle itself is automated, an operator typically initiates the process. This usually involves positioning the pallet within the wrapping zone, manually attaching the stretch film tail to the load before starting the cycle, and cutting the film upon completion.

How It Enhances Pallet Wrapping Operations

The Semi-Automatic Rotary Arm Stretch Wrapper bridges the gap between manual wrapping and fully automated systems. Here’s how it typically works:

1. Load Placement: An operator uses a forklift or pallet jack to place the palletized load in the designated wrapping area.
2. Film Attachment: The operator manually pulls the stretch film from the carriage and tucks it into the base of the load or uses a clamp.
3. Cycle Initiation: The operator selects the appropriate wrap settings (e.g., number of top/bottom wraps, arm speed) on the control panel and starts the machine.
4. Wrapping Cycle: The rotary arm begins to circle the stationary pallet, moving vertically along a mast to apply the film according to the pre-set parameters. The powered pre-stretch system elongates the film, maximizing its yield and ensuring a tight, secure wrap.
5. Cycle Completion: Once the wrapping pattern is complete, the arm stops. The operator then cuts the film tail and secures it to the load.
6. Load Removal: The wrapped pallet is ready to be removed from the machine.

Key Advantages of Semi-Automatic Rotary Arm Wrappers

Choosing this type of wrapper offers several distinct benefits:

• Superior Load Stability: Ideal for heavy, tall, or unstable loads that might shift or topple on a rotating turntable. The pallet remains stationary, minimizing stress on the contents.
• Increased Efficiency: Significantly faster and more consistent than manual wrapping, reducing labor time and ensuring uniform load containment.
• Optimized Film Usage: Powered pre-stretch systems can significantly stretch the film (often up to 250% or more), reducing material costs and environmental impact compared to manual or lower-spec machines. Learn more about the importance of load containment.
• Operational Flexibility: Operators can easily adjust wrap parameters like tension, arm speed, and wrap counts via user-friendly controls to suit different load types and stability requirements.
• Cost-Effectiveness: Offers a lower initial investment compared to fully automatic rotary arm systems, making advanced wrapping technology more accessible.
• Adaptability: Can handle a wide range of pallet dimensions and weights.

Typical Technical Specifications

Note: The parameters below represent common specifications and may not exactly match the equipment shown in the video. For precise details tailored to your needs, direct consultation is recommended.

• Machine Type: Semi-Automatic, Rotary Arm Pallet Wrapper
• Typical Max Pallet Size: 1200mm x 1200mm (Varies by model)
• Typical Max Load Weight: Upwards of 2000kg (Designed for heavy loads)
• Film Delivery System: Powered Pre-Stretch Mechanism
• Common Pre-Stretch Levels: Adjustable, often up to 250%
• Rotary Arm Speed: Adjustable, commonly ranging from 3 to 15 RPM
• Control System: User-friendly control panel with programmable wrap patterns
• Standard Power: Typically 220V, single phase (Check specific model requirements)
• Safety Mechanisms: Includes features like emergency stop buttons and arm obstruction sensors.
• Approximate Footprint: Generally around 4000mm x 1500mm x 2500mm (L x W x H), but varies.

Common Industrial Applications

The capabilities of the Semi-Automatic Rotary Arm Stretch Wrapper make it suitable for various industries:

• Beverage Industry: Securely wraps heavy pallets of bottled or canned goods, preventing shifting during transit and protecting packaging. The stationary load prevents potential spillage from centrifugal force.
• Building Materials & Garden Centers: Effectively wraps bulky or irregularly shaped items like bags of cement, soil, bricks, or landscaping products, ensuring pallet integrity during handling.
• Distribution and Logistics: Improves throughput in busy hubs by providing consistent, secure wrapping for diverse pallet loads, protecting goods from damage, dust, and moisture.
• Manufacturing: Stabilizes pallets of finished goods, components, or raw materials coming off production lines, preparing them for storage or shipment. Essential for products sensitive to movement.

Is a Semi-Automatic Rotary Arm Wrapper Right for You?

Consider this type of machine if:

• You frequently wrap heavy, tall, or unstable pallet loads.
• Your throughput needs exceed manual wrapping capabilities but don't justify a fully automatic system.
• You require flexibility to adjust wrapping parameters for different load types.
• Floor space allows for the machine's footprint, noting the load itself is stationary during wrapping.
• You are looking for a cost-effective upgrade from manual or basic turntable machines.

By understanding the features, benefits, and applications of semi-automatic rotary arm stretch wrappers, businesses can make informed decisions to enhance their packaging processes, improve load security, and boost overall operational efficiency.
