Automatic Pallet Wrapping Machine with Rotary Arm

Enhancing Load Stability: Understanding the Automatic Rotary Arm Pallet Wrapping Machine

The automatic pallet wrapping machine with a rotary arm represents a key piece of equipment in modern pallet packaging automation. This type of machinery is specifically designed to wrap pallets securely with stretch film or similar packaging materials, preparing them for safe storage or transportation. Its defining characteristic is the use of a rotating arm that travels around the pallet, while the pallet itself remains stationary. This unique approach makes it particularly effective for wrapping loads that are inherently unstable, exceptionally heavy, or tall.

How Rotary Arm Pallet Wrappers Operate

Unlike traditional turntable pallet wrappers where the load spins, the rotary arm stretch wrapper keeps the pallet still. This fundamentally changes the dynamics of the wrapping process:

1. Stationary Load: The pallet is placed in the wrapping zone (often on the floor or an integrated conveyor).
2. Rotating Arm: A motorized arm, mounted on a vertical mast, orbits the stationary pallet.
3. Film Dispensing: The arm carries a film carriage system that dispenses the stretch film.
4. Vertical Movement: As the arm rotates, the film carriage moves vertically up and down the mast to ensure complete coverage of the load.
5. Controlled Tension & Pre-stretch: Advanced film delivery systems precisely control film tension and often incorporate motorized pre-stretch mechanisms. Pre-stretching elongates the film before application (often up to 300%), maximizing film yield, reducing material costs, and ensuring tighter, more secure load stability.
6. Programmable Controls: Operators can typically use a PLC (Programmable Logic Controller) with a touchscreen interface to set various wrapping parameters, such as the number of top and bottom wraps, arm rotation speed, film tension, and wrapping patterns, tailoring the wrap cycle to specific load requirements.

This stationary wrapping method significantly reduces the risk of product shifting or toppling, making it indispensable for challenging applications.

Key Features and Technical Specifications

While specific configurations vary, typical features and parameters for an automatic rotary arm pallet wrapper include:

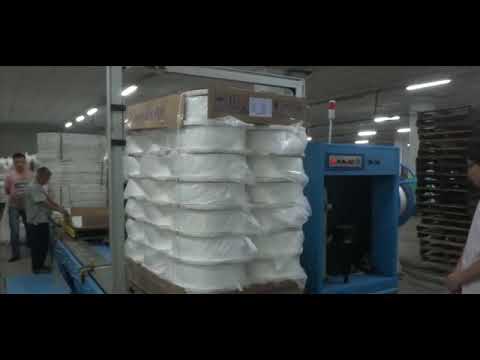

Disclaimer: The parameters below provide a general overview and may not exactly match the specific equipment shown in the video. For precise specifications tailored to your needs, please contact the manufacturer or supplier.

• Machine Type: Rotary Arm Automatic Pallet Wrapper
• Load Handling: Suitable for various load weights, often up to 2000kg or more.
• Film Delivery System: Commonly features motorized pre-stretch capabilities (e.g., up to 300%).
• Wrapping Speed: Capable of handling moderate to high throughput, potentially up to 35 pallets per hour or more, depending on load size and wrap pattern.
• Control System: Typically utilizes a PLC with a user-friendly HMI (Human-Machine Interface), often a touchscreen.
• Machine Footprint: Requires adequate floor space (e.g., around 4000mm x 3000mm, but varies widely).
• Power Requirements: Standard industrial power supply (e.g., 415V, 50Hz, three phase - check local requirements).
• Safety Features: Essential features include emergency stops, safety fencing or light curtains, and obstacle sensors.
• Film Specifications: Compatible with standard LLDPE stretch films, typically 17 to 35 microns thick.
• Customization: Options often include variable arm/carriage speeds, custom wrap programs, integrated top sheet dispensers, and conveyor integration.

Core Benefits of Rotary Arm Technology

Choosing a rotary arm wrapper offers distinct advantages, particularly in specific operational contexts:

• Superior Load Stability: The primary benefit. By keeping the load stationary, it prevents centrifugal forces from destabilizing tall, light, very heavy, or awkwardly shaped pallets.
• Increased Throughput: Automation streamlines the wrapping process compared to manual methods, increasing efficiency and pallet throughput.
• Material Savings: Pre-stretch systems significantly reduce the amount of film consumed per pallet, leading to cost savings and environmental benefits.
• Enhanced Warehouse Safety: Automating the wrapping process reduces manual handling risks. The stationary nature is inherently safer for unstable loads. Integrated safety features further protect personnel.
• Versatility: Effectively handles a wide range of load types that are unsuitable for turntable wrappers.

Ideal Applications for Rotary Arm Pallet Wrappers

The unique capabilities of these machines make them highly suitable for various industries:

• Distribution Centers for Electronics: Essential for securely wrapping pallets of fragile and often high-value electronics. The gentle, stable wrapping process minimizes the risk of damage from vibration or shifting during transit.
• Bottling and Canning Plants: Critical for maintaining the stability of palletized bottles (glass or plastic) or cans. The secure wrap prevents layers from shifting and minimizes breakage, especially important for heavy beverage or food pallets.
• Home Improvement and Building Supply Retailers: Efficiently handles heavy, bulky, and often uneven loads like bags of cement, stacks of tiles, doors, or windows. The rotary arm ensures consistent, secure wrapping for these challenging product mixes.
• Furniture Manufacturing: Safely wraps large, often irregularly shaped furniture items on pallets without risking damage during rotation.
• Pharmaceuticals and Chemicals: Provides secure containment and stability for palletized drums, bags, or boxes, helping to maintain product integrity and safety compliance.

Making the Right Choice

Selecting the appropriate automatic pallet wrapping machine involves considering factors like:

• Load characteristics (weight, dimensions, stability)
• Required throughput (pallets per hour)
• Available floor space
• Integration needs (conveyors, existing automation)
• Budget and desired level of automation

An automatic pallet wrapping machine with a rotary arm is a powerful tool for optimizing packaging operations, particularly where load stability is paramount. By understanding its operational principles and benefits, businesses can enhance their logistics efficiency, improve product protection, and ensure safer handling throughout the supply chain.
