TIP 1: Driving Way

a. Mechanical

Mechanical tilter structure


b. Hydraulic

hydraulic tilter

hydraulic upender's station
hydraulic upender's cylinder

The machine drived by hydraulic station by cylinders: high speed

TIP 2: Structure of the upender

Upeder base

Base of the mechnical upender and tilter with driving

Upender turning structure

Structure machining before painting



Hydraulic tilter with different working table

The hydraulic upender & tilter with different structure per handling loads..


TIP 3: Working table of the upenders

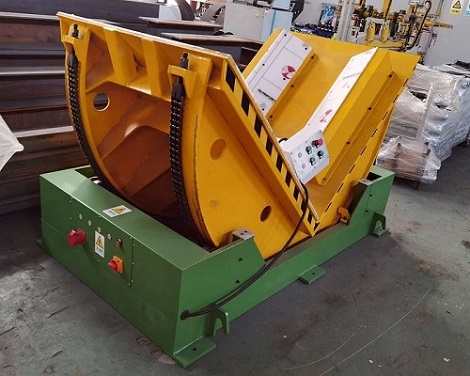

Mechanical tilter

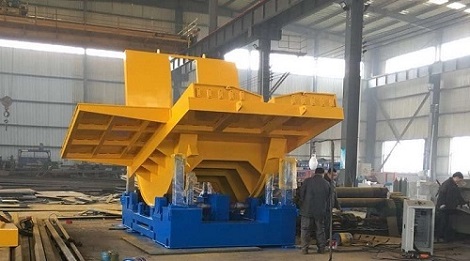

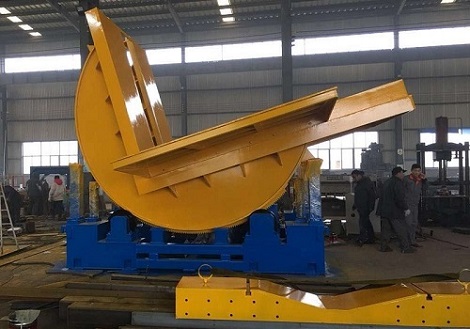

Upender with big working table

It is able designing the working table for different load size and shape.


TIP 4: Max. Loading

upender for sale
The Max. Loading of the upender & tilter can be 50T, 80T, 100T

TIP 5: Different turning degree and special handling requirement

180 degree tipper
The tipper & upender for 180 degree turning with conveyor for handling the load per production requirement

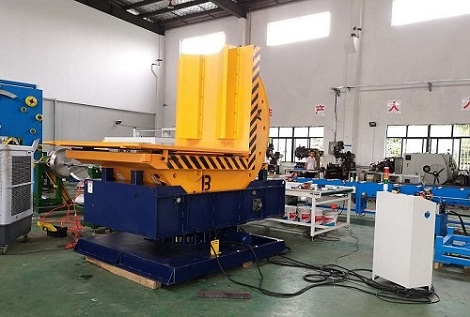

rotation upender
The base of the upender is able 360 degree turning for changing the loading direction.

TIP 6: Different load

Upender table with conveyor

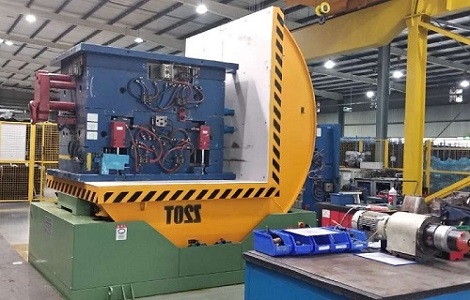

Tilter for mold
Coil tilter & upender

FINAL

As a purchaser and decision maker, you can check with our team for the best solution of the upender and tilter in considering the handling way, max. loading, load size and workingshop layout...
