Fhopepack Innovation

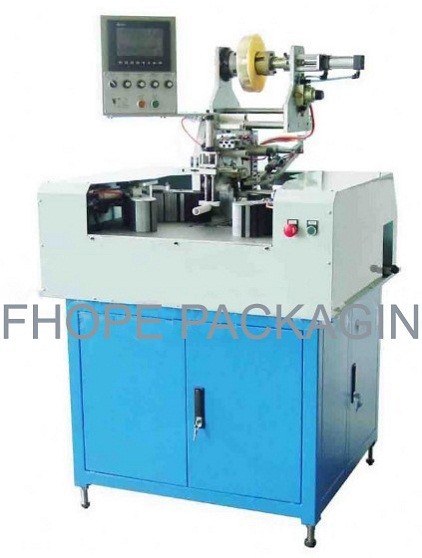

FPCA-200 Cable coil wrapping machine/automatic Cable packing machine/coil wrapper

Fhope offer now special designed multifunctional cable coil wrapping machine, which can be automatic wrapping and labeling very from the size of the cable coil. The Fhope provides cable packaging solutions for the plastic industry. Our commitment to the industry has resulted in the development of innovative, cost efficient products that address problems like loose, irregular packaging.

Free Consultation

FPCA Series: Cable coil wrapping machine

Description
Other

Multifunctional cable coil wrapping machine:

Fhope offer now special designed multifunctional cable

coil wrapping machine, which can be automatic wrapping

and labeling very from the size of the cable coil. The

Fhope provides cable packaging solutions for the

plastic industry. Our commitment to the industry has

resulted in the development of innovative, cost

efficient products that address problems like loose,

irregular packaging. Our sales, equipment service,

customer service and engineering departments can help

you design the optimum protective packaging system for

your application. To learn more about Fhope cable

wrapping machine for pipe coil, please check the

following information

Description:

FPCA series cable packing machine is mainly used to

packaging of cable coil, copper coil, steel coil...

which is with highly efficiency and nice packaging for

saving labor and material cost. PLC automatic control

system & human-computer, can store different wire

coil specifications. All data will show on operating

human-computer interface, module design control

cabinet and operation panel, easy to maintain and

change.

Features:

1. PLC&HMI for automatic material calculates function.

2. Different specifications stored on program.

3. Panel operation for easy maintain and change

4. Special design for easy loading and unloading by

manual easily.

5. Ring soft stop, start and reset.

6. Manual and automatic working mode for easy

operation.

7. The converters for adjusting the speed of the ring

and rollers

8. Overlapping rate of the packing material according

to requirement.

9. Foot Switch jog

10. overcurrent protection

11. Supportive rollers for avoiding coil shaking in

wrapping12. Automatic packing machinery cutting and

feeding13. Derived supportive roller for turning.

14. Adopting 4 groups of electric arm to adjust,

including adjusting wire reel size and collating

winding center point.

15.Indicator alarms automatically when trouble occurs.

Trouble can be shown automatically.

16. Special brake for the tape release device to avoid

material folding.

Note: Can be designed according your specification.

FPCA Series: Cable coil wrapping machine

Parameters:

FPCA-200 Voltage (V/Hz) AC 380/60( or your

requirement) Power supply(KW) 1.8 Cable coil ID(mm)

150-400 Cable coil OD(mm) 250-500 Cable coil width(mm)

80-200 Cable coil Weight(Kg) 2-30 Packing material

PE/Stretch film/pvc Ring speed(r/min) 10-120 Wrapping

speed 20-30sec/pcs Overlapping rate 20-90% Related

machines: Cable wrapping machine

Hose coil wrapping machine

Cable coil

wrapping machine

Copper coil wrapping machine

FPCA-200 Cable coil wrapping machine/automatic Cable packing machine/coil wrapper
